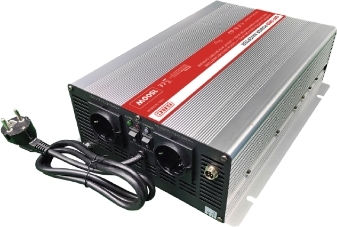

The GBC INV5-24-1500-CB power supply converts a 24 V DC input to a 220–240 V AC pure sine wave output, suitable for inductive loads such as motors and pumps, as well as sensitive electronic devices....

The GBC INV5-24-1500-CB power supply converts a 24 V DC input to a 220–240 V AC pure sine wave output, suitable for inductive loads such as motors and pumps, as well as sensitive electronic devices. It combines inverter, battery charger and AVR stabiliser functions, while the UPS bypass supplies the load directly from the AC mains when available. SoftStart...

See full description See full description
426,90 €
298 90 €
-29%
price drop
Lowest price '26
Delivery by Thu, 26 Nov
14,00 €   shipping cost
Sent from Greece
From Lynk.gr 4.9 (15)
Greece
1 piece
See Industrial Materials on the page of Lynk.gr

Learn more about invoicing

Description

Description

The GBC INV5-24-1500-CB power supply converts a 24 V DC input to a 220–240 V AC pure sine wave output, suitable for inductive loads such as motors and pumps, as well as sensitive electronic devices. It combines inverter, battery charger and AVR stabiliser functions, while the UPS bypass supplies the load directly from the AC mains when available. SoftStart technology reduces the starting current.

Output is provided via two Schuko sockets, while the input is connected via ring terminals. The remote control is included.

  • Input voltage: 21–30 V DC
  • Rated output power: 1500 W
  • Maximum output power: 3000 W
  • Output voltage: 220–240 V AC
  • Output frequency: 50/60 Hz ±0.5 Hz
  • Output waveform: Pure sine wave
  • Input current: 62 A
  • Maximum charging current: 8 A
  • Minimum battery capacity: 120 Ah
  • Functions: AVR, battery charger and UPS bypass
  • Technology: SoftStart
  • Input connection: Ring terminals
  • Output connection: 2 Schuko sockets
  • Remote control: Included
  • Fuses: 6 × 20 A
  • Maximum efficiency: 93%
  • Low battery alarm: 21–22 V DC
  • Undervoltage shutdown: 19–20 V DC
  • Overvoltage shutdown: 31–32 V DC
  • Enclosure material: Aluminium
  • Protection rating: IP20
  • Dimensions: 410 × 252 × 101 mm
  • Weight: 5 kg
