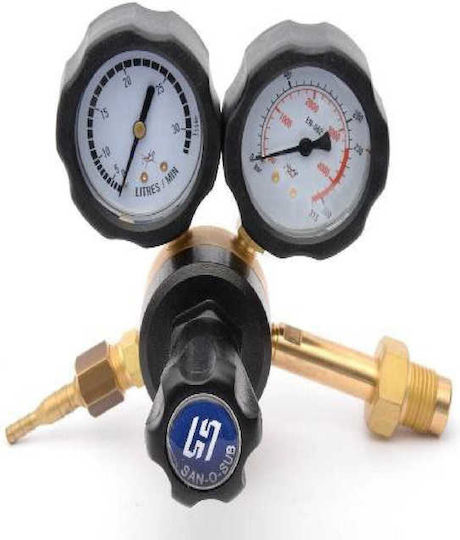

Oxygen Cylinder Pressure Regulator 0-10 Bar San-O-Sub from Italy

Manufacturing Standard: EN ISO 2503

Application: Cutting, heating, and welding

IMPER pressure reducer for use with industrial and medical oxygen cylinders. The adjustment with the front knob is ideal for medium-type applications.

Technical specifications:

• Compatible gases: O₂
• Inlet pressure: Maximum 230 bar
• Outlet pressure: Adjustable 0/10 bar
• Flow rate: See table
• Operating temperature: -15° to +60°

Materials:

• Body: Brass CW617N (UNI EN 12165)
• Valve: High-pressure valve with PTFE seat
• Valve spindle: Brass CW617N (UNI EN 12165)
• Diaphragm: Neoprene, diameter 50 mm
• Filter: Brass, located inside the inlet connection

Pressure gauges:

• Gauge: ISO 5171, diameter 63 mm, class 2.5
• High-pressure gauge: Full scale 0/315 bar
• Low-pressure gauge: Full scale 0/15 bar

Connections:

• Inlet: UNI – NF – DIN – BS – CGA
• Outlet: 3/8 G with nut and tapered connector for rubber hose 6/8 mm
• For reducer: Connection with tapered tubing 6 or 8 mm

Safety devices: Overpressure safety valve
