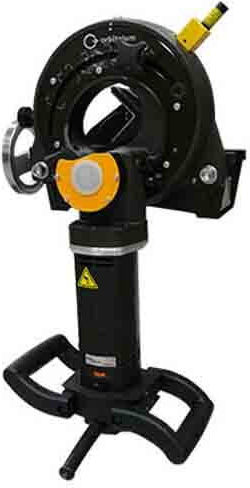

New, innovative pipe cutter from Orbitalum Tools for cutting and angling pipes and fittings in just seconds. Perfect preparation for rotational welding.

The new GFX 3.0 features exceptional characteristics:

• Ideal for pressure connector applications
• Square, free of burrs, and cold machining process
• Deformation-free clamping system suitable for thin-walled pipes
• Optimized trace flow due to new jaw design
• Hardened cast iron jaws
• Built-in laser pointer to mark the cut point
• Ergonomically designed motor handle
• Powerful 1.2 kW motor with speed controller for cutting various materials and extending tool life
• Electronic overload protection with integrated thermometer and electronic speed regulation
• Ergonomically positioned speed adjustment wheel
• Cord that rotates with quick detachable connector
• Second blade position for angle cutting
• Simultaneous or separate cutting and angling
• Easy to use due to low weight

Technical specifications:
Electric drive with single-phase AC motor
Dimensions (length x height x width) [mm] 570 x 280 x 330
Weight (without jaws) [kg] 28.1
Protection class II
Voltage [V, Hz] 230 V, 50/60 Hz EU or 120 V, 50/60 Hz US
Power [W] 1200
Total speed [rpm] 30 - 200
Vibration level (EN 50144) [m/s²] < 2.5
