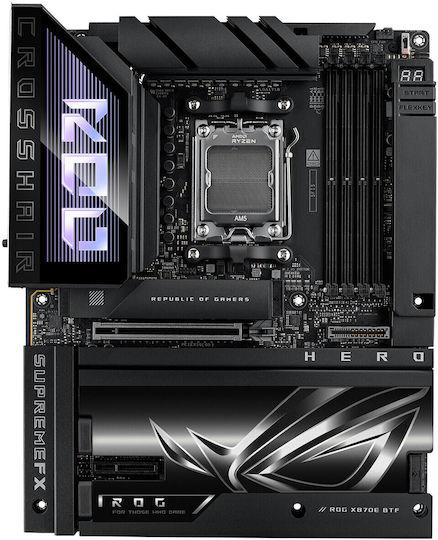

Asus ROG Crosshair X870E Hero BTF Wi-Fi Motherboard ATX with AMD AM5 Socket
Motherboards

Asus ROG Crosshair X870E Hero BTF Wi-Fi Motherboard ATX with AMD AM5 Socket

Key features:

  • 4 DDR5 RAM slots
  • For AMD Zen 4/5 processors
  • Support for 3x PCI Express 4.0 x16
  • HDMI connections
  • Slots for 4x Sata III and 5x M.2
See full description

  • Socket

    The processor socket type.

    The processor we choose should have the same socket in order to fit into the motherboard.

    In addition to the socket, the motherboard chipset must also be supported by the processor.

  • Size

    The size of the motherboard is expressed with a code name (standard).
    2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

    ATX

    Classic size with full feature support and many expansion slots.

  • Usage

    Desktop

    Motherboards designed for use in desktop computers.

  • Chipset

    The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

    The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

    If the motherboard chipset is supported by the processor, then the socket will also be compatible.



  • Memory

    Memory Type and RAM Slots

    Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.
  • See all
Review the product
Product report

Description

Description

This motherboard features an AM5 socket, suitable for AMD processors such as the Ryzen series, allowing smooth collaboration with modern CPUs. It is built in ATX size, providing various installation options and support for expansion features and ports compatible with classic computer cases.

The Asus ROG Crosshair X870E Hero offers advanced 7.1 channel audio, making it ideal for gamers and demanding users. It also supports DDR5 memory, one of the latest types of memory, capable of delivering high speeds starting from 4000 MT/s.

The motherboard includes:

  • Four SATA III 6Gb/s ports, suitable for connecting SSDs and HDDs.
  • Two PCI Express x16 4.0 slots and one x16 5.0 slot, offering expansion flexibility.
  • Four M.2 slots, one PCIe 4.0 and three PCIe 5.0, supporting SSD units for impressive loading speeds.
  • Built-in WiFi and Bluetooth for wireless connections.

The motherboard is compatible with the latest generations of Zen 4 and Zen 5 processors, ensuring high performance and future scalability.

AI OVERCLOCKING

ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.

AI COOLING II

Balance the thermal and acoustic of any build with a single click.

AI NETWORKING II

AI Networking II combines smart technologies for continuous optimization of network performance, providing reliable and seamless connectivity, and unleashing the full speed of WiFi 7.

DDR5 Power

For those who want to exceed the factory speeds of DDR5 memory, the ROG Crosshair X870E Hero BTF is ready and prepared for enthusiast-level kits, thanks to its broad support for AMD EXtended Profiles for Overclocking (EXPO). Experienced users can further optimize performance through the extensive range of settings in the UEFI.

DRAM Technology NitroPath

The DRAM NitroPath technology provides enhanced DDR5 memory performance. The shorter gold finger pins and optimized signal paths ensure faster data transfer between the DRAM and the CPU, allowing for greater margins and stability in memory overclocking.

These reinforced DRAM slots are also better prepared to withstand the wear and tear of the RAM installation process compared to traditional slot designs, making them ideal for enthusiasts who keep their system upgraded with the fastest available kits.

Heat Management

An extensive array of headers frames the ROG Crosshair X870E Hero BTF for precise control and monitoring of cooling.

  • Multiple temperature sources: Each header can be configured to monitor and react to three user-configurable thermal sensors for workload-based cooling. All settings can be easily managed via Fan Xpert 4 or UEFI.
  • 4-pin Fan Headers: In addition to the pair of CPU fan headers, the ROG Crosshair X870E Hero BTF features four chassis headers, each supporting automatic detection of PWM or DC fans.
  • AIO Pump Header: An additional PWM/DC fan header provides dedicated control for All-In-One (AIO) liquid cooling systems.

Five Integrated M.2 Slots

The ROG Crosshair X870E Hero BTF features five integrated M.2 slots.

Three of them are ready for PCIe 5.0, offering explosive speeds of 16 GB/s.

The remaining slots provide an equally impressive speed of 8 GB/s through PCIe 4.0 interfaces.

Expansion Slot
 The first x16 expansion slot features PCIe 5.0 technology, offering incredible speeds of up to 64 GB/s for compatible devices, with full support for next-generation graphics cards.
To withstand the weight of bulky graphics cards, it is also protected with the SafeSlot retention bracket and can be easily released thanks to the PCIe Slot Q-Release Slim.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Details

Size
ATX

Size

The size of the motherboard is expressed with a code name (standard).
2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

ATX
Classic size with full feature support and many expansion slots.
Type
Desktop

Type

Desktop

Motherboards designed for use in desktop computers.

Processor

Supported Processors
AMD
Models
Ryzen
Supported CPU Generation
Zen 4, Zen 5
Socket
AM5

Socket

The processor socket type.

The processor we choose should have the same socket in order to fit into the motherboard.

In addition to the socket, the motherboard chipset must also be supported by the processor.

Chipset

Model
AMD X870E

Model

The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

If the motherboard chipset is supported by the processor, then the socket will also be compatible.



Memory

Memory type
DDR5

Memory type

The type of RAM memory that is compatible with the motherboard.

DDR5

The latest memory type, with speed starting from 4000 MT/s.
Quantity
4 DIMM Slots
Memory Speeds
8000OC, 8200OC, 8600OC

Memory Speeds

The supported RAM memory speeds.

The RAM and processor that will be installed in the computer should be able to reach these speeds, while special settings may be required to reach maximum speeds.
Memory Channels
Dual Channel

Memory Channels

Dual Channel

It is possible to install two identical RAM modules that will work in parallel and provide more speed to applications that require a lot of memory (e.g. video editing). 2. For example, if two identical 8GB RAM modules are installed in a dual channel motherboard, they will perform better than installing one 16GB module.

Internal Connectors

PCI Express x16 4.0
2 Slot

PCI Express x16 4.0

The available PCI Express x16 4.0 expansion card slots of the motherboard.
PCI Express x16 5.0
1 Slot

PCI Express x16 5.0

The available PCI Express x16 5.0 expansion card slots of the motherboard.
SATA III 6Gb/s
4 Port

SATA III 6Gb/s

Modern hard drive connection standard.

Most SSD hard drives require this standard to perform at their maximum potential.
M.2 Type
1 PCIe 4.0 Port, 3 PCIe 5.0 Ports

M.2 Type

The number and type of available slots for installing M.2 SSD units.
M.2 Slots
0

External Connectors

Rear USB-A outputs
6 USB 3.2 Ports
Rear USB-C outputs
2 USB 3.2 Ports, 2 USB 4.0 Ports
Ethernet (LAN)
2

Ethernet (LAN)

The number of ethernet ports for wired connection to a network that the motherboard has on its back panel.
Screen Connections
HDMI

Specifications

RGB Lighting
Yes
WiFi/Bluetooth
Yes
Extra
Bios Flashback, Clear CMOS button

Extra

Bios Flashback

Ability to update the BIOS without requiring a CPU and RAM installed on the motherboard. This advanced feature is intended for experienced users and is useful for supporting newer processors on older motherboards. Please refer to the manufacturer's instructions for the process, as it may vary between manufacturers.

For example, if you want to install a Ryzen 5000 series processor on a chipset that only supports it after a BIOS upgrade, BIOS Flashback can be used without having an older processor on the motherboard.

Clear CMOS button

Button for clearing the CMOS memory of the motherboard. Advanced function for experienced users that can also be achieved by simply removing and reinserting the motherboard battery. Useful function if something goes wrong during the overclocking process or BIOS settings for a reset to the original state.

Sound

Sound Card Channels
7.1
Additional Audio Connections
Optical S/PDIF

Top Specs

Memory
4x DDR5

Memory

Memory Type and RAM Slots

Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Product Details

Size
ATX

Size

The size of the motherboard is expressed with a code name (standard).
2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

ATX
Classic size with full feature support and many expansion slots.
Type
Desktop

Type

Desktop

Motherboards designed for use in desktop computers.

Processor

Supported Processors
AMD
Models
Ryzen
Supported CPU Generation
Zen 4, Zen 5
Socket
AM5

Socket

The processor socket type.

The processor we choose should have the same socket in order to fit into the motherboard.

In addition to the socket, the motherboard chipset must also be supported by the processor.

Chipset

Model
AMD X870E

Model

The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

If the motherboard chipset is supported by the processor, then the socket will also be compatible.



Memory

Memory type
DDR5

Memory type

The type of RAM memory that is compatible with the motherboard.

DDR5

The latest memory type, with speed starting from 4000 MT/s.
Quantity
4 DIMM Slots
Memory Speeds
8000OC, 8200OC, 8600OC

Memory Speeds

The supported RAM memory speeds.

The RAM and processor that will be installed in the computer should be able to reach these speeds, while special settings may be required to reach maximum speeds.
Memory Channels
Dual Channel

Memory Channels

Dual Channel

It is possible to install two identical RAM modules that will work in parallel and provide more speed to applications that require a lot of memory (e.g. video editing). 2. For example, if two identical 8GB RAM modules are installed in a dual channel motherboard, they will perform better than installing one 16GB module.

Internal Connectors

PCI Express x16 4.0
2 Slot

PCI Express x16 4.0

The available PCI Express x16 4.0 expansion card slots of the motherboard.
PCI Express x16 5.0
1 Slot

PCI Express x16 5.0

The available PCI Express x16 5.0 expansion card slots of the motherboard.
SATA III 6Gb/s
4 Port

SATA III 6Gb/s

Modern hard drive connection standard.

Most SSD hard drives require this standard to perform at their maximum potential.
M.2 Type
1 PCIe 4.0 Port, 3 PCIe 5.0 Ports

M.2 Type

The number and type of available slots for installing M.2 SSD units.
M.2 Slots
0

External Connectors

Rear USB-A outputs
6 USB 3.2 Ports
Rear USB-C outputs
2 USB 3.2 Ports, 2 USB 4.0 Ports
Ethernet (LAN)
2

Ethernet (LAN)

The number of ethernet ports for wired connection to a network that the motherboard has on its back panel.
Screen Connections
HDMI

Specifications

RGB Lighting
Yes
WiFi/Bluetooth
Yes
Extra
Bios Flashback, Clear CMOS button

Extra

Bios Flashback

Ability to update the BIOS without requiring a CPU and RAM installed on the motherboard. This advanced feature is intended for experienced users and is useful for supporting newer processors on older motherboards. Please refer to the manufacturer's instructions for the process, as it may vary between manufacturers.

For example, if you want to install a Ryzen 5000 series processor on a chipset that only supports it after a BIOS upgrade, BIOS Flashback can be used without having an older processor on the motherboard.

Clear CMOS button

Button for clearing the CMOS memory of the motherboard. Advanced function for experienced users that can also be achieved by simply removing and reinserting the motherboard battery. Useful function if something goes wrong during the overclocking process or BIOS settings for a reset to the original state.

Sound

Sound Card Channels
7.1
Additional Audio Connections
Optical S/PDIF

Top Specs

Memory
4x DDR5

Memory

Memory Type and RAM Slots

Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

Description

This motherboard features an AM5 socket, suitable for AMD processors such as the Ryzen series, allowing smooth collaboration with modern CPUs. It is built in ATX size, providing various installation options and support for expansion features and ports compatible with classic computer cases.

The Asus ROG Crosshair X870E Hero offers advanced 7.1 channel audio, making it ideal for gamers and demanding users. It also supports DDR5 memory, one of the latest types of memory, capable of delivering high speeds starting from 4000 MT/s.

The motherboard includes:

  • Four SATA III 6Gb/s ports, suitable for connecting SSDs and HDDs.
  • Two PCI Express x16 4.0 slots and one x16 5.0 slot, offering expansion flexibility.
  • Four M.2 slots, one PCIe 4.0 and three PCIe 5.0, supporting SSD units for impressive loading speeds.
  • Built-in WiFi and Bluetooth for wireless connections.

The motherboard is compatible with the latest generations of Zen 4 and Zen 5 processors, ensuring high performance and future scalability.

AI OVERCLOCKING

ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.

AI COOLING II

Balance the thermal and acoustic of any build with a single click.

AI NETWORKING II

AI Networking II combines smart technologies for continuous optimization of network performance, providing reliable and seamless connectivity, and unleashing the full speed of WiFi 7.

DDR5 Power

For those who want to exceed the factory speeds of DDR5 memory, the ROG Crosshair X870E Hero BTF is ready and prepared for enthusiast-level kits, thanks to its broad support for AMD EXtended Profiles for Overclocking (EXPO). Experienced users can further optimize performance through the extensive range of settings in the UEFI.

DRAM Technology NitroPath

The DRAM NitroPath technology provides enhanced DDR5 memory performance. The shorter gold finger pins and optimized signal paths ensure faster data transfer between the DRAM and the CPU, allowing for greater margins and stability in memory overclocking.

These reinforced DRAM slots are also better prepared to withstand the wear and tear of the RAM installation process compared to traditional slot designs, making them ideal for enthusiasts who keep their system upgraded with the fastest available kits.

Heat Management

An extensive array of headers frames the ROG Crosshair X870E Hero BTF for precise control and monitoring of cooling.

  • Multiple temperature sources: Each header can be configured to monitor and react to three user-configurable thermal sensors for workload-based cooling. All settings can be easily managed via Fan Xpert 4 or UEFI.
  • 4-pin Fan Headers: In addition to the pair of CPU fan headers, the ROG Crosshair X870E Hero BTF features four chassis headers, each supporting automatic detection of PWM or DC fans.
  • AIO Pump Header: An additional PWM/DC fan header provides dedicated control for All-In-One (AIO) liquid cooling systems.

Five Integrated M.2 Slots

The ROG Crosshair X870E Hero BTF features five integrated M.2 slots.

Three of them are ready for PCIe 5.0, offering explosive speeds of 16 GB/s.

The remaining slots provide an equally impressive speed of 8 GB/s through PCIe 4.0 interfaces.

Expansion Slot
 The first x16 expansion slot features PCIe 5.0 technology, offering incredible speeds of up to 64 GB/s for compatible devices, with full support for next-generation graphics cards.
To withstand the weight of bulky graphics cards, it is also protected with the SafeSlot retention bracket and can be easily released thanks to the PCIe Slot Q-Release Slim.

Manufacturer

Manufacturer Details

Warnings & Safety Information
