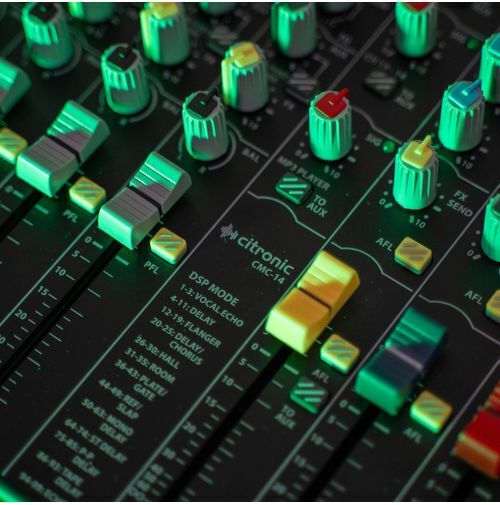

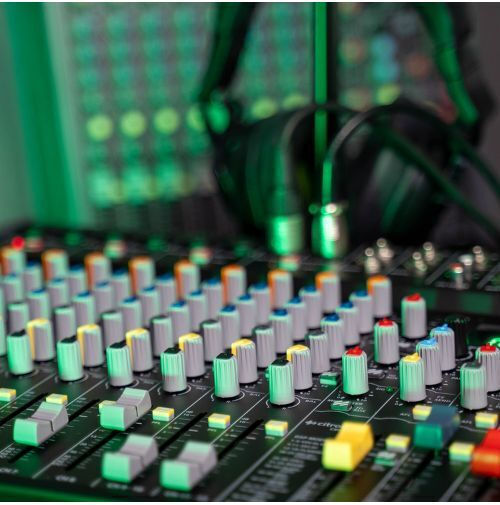

The Citronic CMC-14 analog mixer features 14 channels for audio mixing and built-in DSP effects with 99 adjustable delay, reverb and modulation presets. The mono mic/line inputs have combo XLR/6.3 mm jack sockets, Gain controls and a three-band equalizer, while +48 V Phantom Power can be switched on in pairs for the XLR inputs.
The mixer supports MP3 playback and recording via USB-A, as well as wireless playback via Bluetooth 5.1 with independent volume control. The main outputs are XLR, and there are also 6.3 mm monitor and headphone outputs, plus an Aux send and stereo return loop.
- Type: Analog
- Channels: 14
- XLR inputs: 10
- Mic/line inputs: 8 combo XLR/6.3 mm jack
- Stereo line inputs: 2
- Aux input: Stereo RCA and 3.5 mm
- Phantom Power: +48 V, switchable in pairs of XLR inputs
- Equalizer: 3-band per channel
- DSP effects: 99 adjustable presets
- Playback and recording: MP3 via USB-A
- Bluetooth: 5.1
- Outputs: Main L/R XLR, monitor L/R 6.3 mm and 6.3 mm headphones
- Aux send and return: 1 Aux send and stereo return
- Dimensions: 310 × 345 × 80 mm
Dimensions
- Type
- Console
- Type
- Analog
- Active
- No
- Channels
- 14
- Phantom Power
- Yes
- Effects
- Yes
- Length
- 310 mm
- Height
- 80 mm
- Length
- 345 mm
Connectivity
- USB (for PC)
- No
- XLR Inputs
- 10
- Bluetooth
- No
- Headphones
- Yes
- Ethernet
- No
- RCA
- Yes
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
