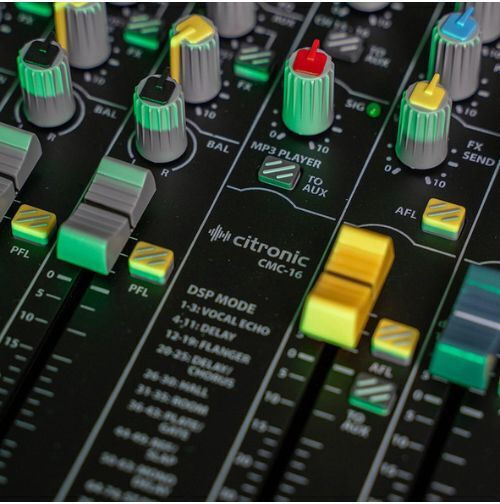

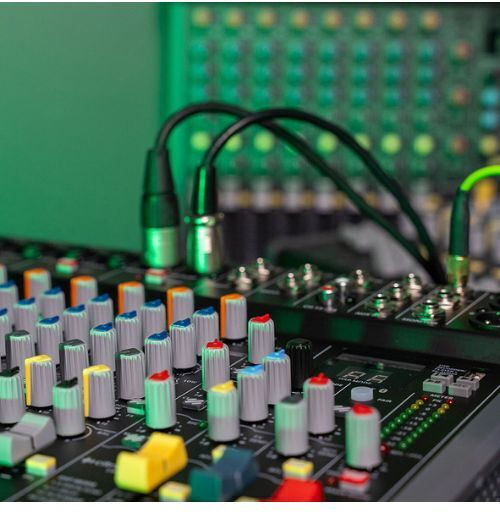

The Citronic CMC-16 analogue mixer features 8 mono microphone/line inputs with combo XLR/jack sockets and 2 stereo line inputs. Each mono channel has gain controls, a three-band equaliser, Aux, FX and Pan controls, as well as a low-cut filter switch and a 60 mm fader. The built-in DSP effects engine includes 99 adjustable delay, reverb and modulation presets.

The mixer supports playback and recording of audio files via USB-A, while the USB connection can also be used to connect to a computer. It also features a Bluetooth receiver with independent volume control, main XLR outputs, 6.3 mm monitor and headphone outputs, as well as an Aux send and stereo return.

• Type: Analogue
• Channels: 16
• XLR inputs: 16
• Microphone/line inputs: 8 combo 6.3 mm XLR/jack
• Line inputs: 2 stereo L/R 6.3 mm jacks
• Audio inputs: Stereo RCA and 3.5 mm minijack
• USB connection: USB-A for audio playback and recording, and computer connection
• Bluetooth: Version 5.1
• Effects: 99 DSP presets with 2 parameter controls
• Equaliser: 3-band per channel
• Phantom power: +48 V, switchable in pairs of XLR inputs
• Outputs: Main L/R XLR, monitor L/R 6.3 mm jacks and 6.3 mm headphone jack
• Aux: 1 send and stereo return
• Dimensions: 400 × 310 × 80 mm
