The HDMI converter allows the transmission of HDMI, IR, RS232, and USB signals over single-mode optical fiber up to a distance of 20 km. It supports resolutions up to 3840 x 2160 px (4K) at 60Hz and features KVM and Plug & Play functions. The set includes an IR transmitter and receiver.

Technical Specifications

• Brand: Delta
• Model: HDMI-OFT-4K-20KM
• Manufacturer Code: HDMI-OFT-4K-20KM
• EAN (GTIN): 5902887094774
• Packaging Weight: 1.050 kg

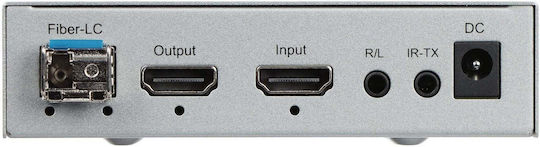

• Inputs: 1 x HDMI, 1 x JACK - Audio (Stereo), 1 x DC Power Jack 2.1/5.5mm

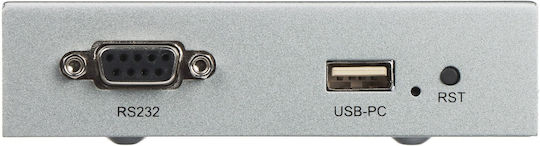

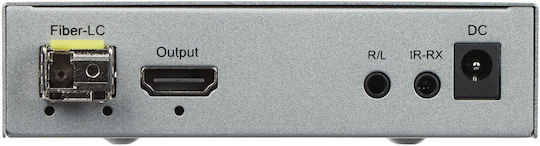

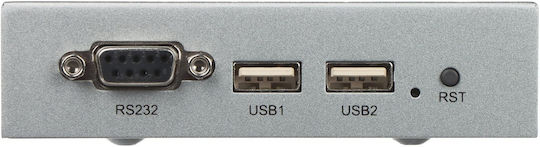

• Outputs: 1 x LC, 1 x HDMI, 1 x JACK, IR transmitter, 1 x RS-232 port, 1 x USB-A port
• Maximum HDMI resolution: 3840 x 2160 px (4K@60Hz)
• Maximum transmission distance: 20 km
• Supported audio formats: L-PCM
• HDCP: 2.2
• Wavelengths: 1310 nm, 1550 nm
• Connection type: LC

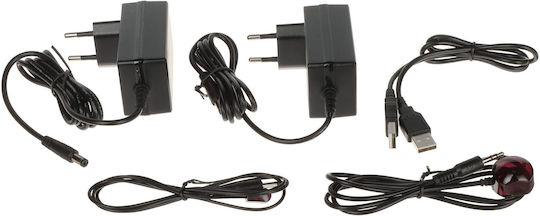

• Power supply: Transmitter - 12 VDC/1.5 A, Receiver - 12 VDC/1.2 A (power supply included)
• Operating temperature: -10 °C ... 55 °C
• Dimensions: 120 x 106 x 29 mm
• Features: KVM, compatible with SFP MSA and SFF-8472, Plug & Play, USB-A/USB-A cable, IR transmitter and receiver
