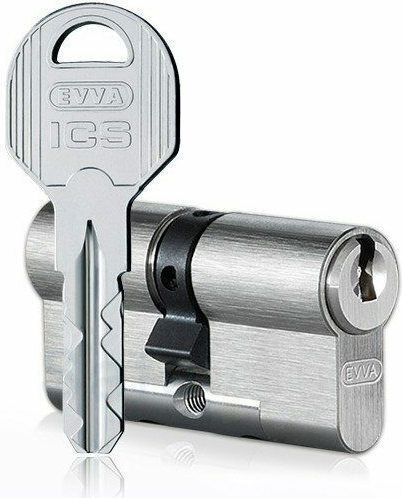

The EVVA ICS high-security cylinder features a protected key profile with side grooves and a mechanism combining sliders and balls. The combination is controlled by 13 locking elements arranged in three rows: two side rows of 10 elements control the outer depths of the key, while a central row of 3 elements controls the inner depths. The owner card is used to control key duplication.
Steel bars at the front and steel reinforcement at the bottom help resist drilling and snapping. Internal locking bars work with the key grooves, making picking and bumping more difficult. The cylinder is certified to EN1303:2015 and SKG standards.
- Type: High-security cylinder
- Model: ICS
- Colour: Silver
- Dimensions: 40–50 mm
- Total length: 90 mm
- Keys: 3 security keys
- Owner card: Included
- Fixing screw: Included
- Certifications: EN1303:2015, SKG
Specifications
- Colour
- Silver
- With Knob
- No
- Half
- No
- Double Function
- No
- with Card
- Yes
Dimensions
- Cylinder Dimensions (mm)
- 40-50
- Total Cylinder Length
- 90 mm
