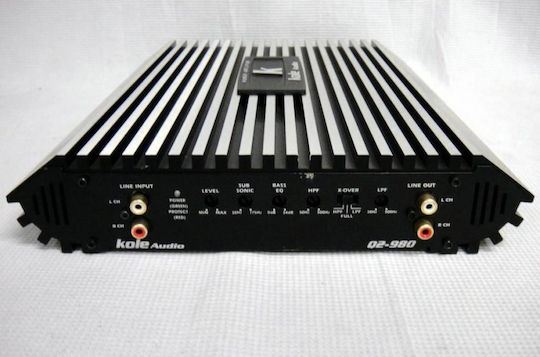

QX-Series 2-Channel Class AB Car Amplifier

• RMS Power Rating:
• 4 ohms: 220 watts x 2 channels
• 2 ohms: 280 watts x 2 channels
• Bridge, 4 ohms: 560 watts x 1 channel
• Maximum Power Capacity: 980 watts x 1 channel
• MOSFET power supply with pulse width modulation
• Includes wired bass level control
• LED power and protection indicators
• Bass EQ boost (0-18 dB bass boost)
• Trimode capability
• Speaker-level inputs
• RCA preamp outputs
• 3-Way protection circuitry
• Platinum RCA level inputs
• Variable high-pass filter (40-250 Hz, 24 dB/octave)
• Variable low-pass filter (40-250 Hz, 24 dB/octave)
• Frequency Response: 10-30000 Hz
• Dimensions: 13"L x 11"W x 2.3"H
• 4-gauge power and ground wiring is required for installation.
