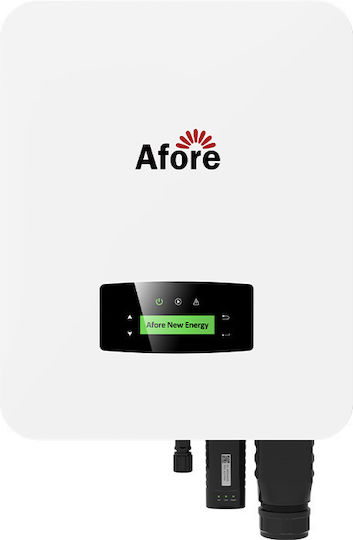

The Afore AF10K-TH Inverter is a three-phase hybrid 10kW inverter for photovoltaic systems, ideal for residential and professional installations.
It offers maximum efficiency with a DC input up to 15kW and a wide MPPT range (150–850V), ensuring stable production even in low sunlight conditions.
It supports 400V lithium batteries, with charging/discharging capability up to 10kW, providing autonomy and energy storage for greater savings.
It is a reliable solution for any photovoltaic project that requires high energy efficiency.
- Output power: 10kW three-phase
- Maximum DC input power: 15kW
- Maximum PV voltage: 1000V
- MPPT range: 150–850V (Full MPPT 500–850V)
- Starting operation voltage: 160V
- DC inputs: 2 x 20A (maximum 30A x2)
- Battery support: Li-Ion 400V
- Battery voltage range: 150–800V
- Maximum charging/discharging current: 30A
- Charging/discharging power: 10kW
- Rated power
- 10000 W
- Nominal Input Voltage
- 400 V
- Power supply
- Three-Phase
