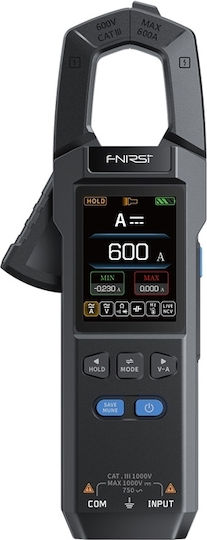

Digital Clamp Meter FNIRSI DMC-100

The FNIRSI DMC-100 is a digital clamp meter designed for universal measurements in electrical installations. The device combines current, voltage, resistance, and other parameter measurements, providing the ability for non-contact voltage testing.

Main features:

• Measurement of AC/DC current and AC/DC voltage
• Measurement of resistance, capacitance, circuit continuity, diodes, and temperature
• NCV function (non-contact voltage detection) for quick voltage presence check
• Dual measurement system for simultaneous voltage and current measurement
• Measurement accuracy with True RMS technology and analysis up to 10,000 counts
• Built-in 1500mAh lithium battery for long-term operation
• 2” color LCD screen and integrated flashlight for low visibility conditions

Technical specifications:

• Maximum clamp diameter: 25mm
• Dimensions: 193 × 74 × 32 mm
• Weight: 194 g
• DC voltage range: 9.999V / 99.99V / 999.9V
• DC current range: 99.99A / 600.0A
• Temperature range: -55 ~ 1300°C

Includes clamp meter, USB-A to USB-C charging cable, sensor for temperature measurement, test lead, and user manual.
