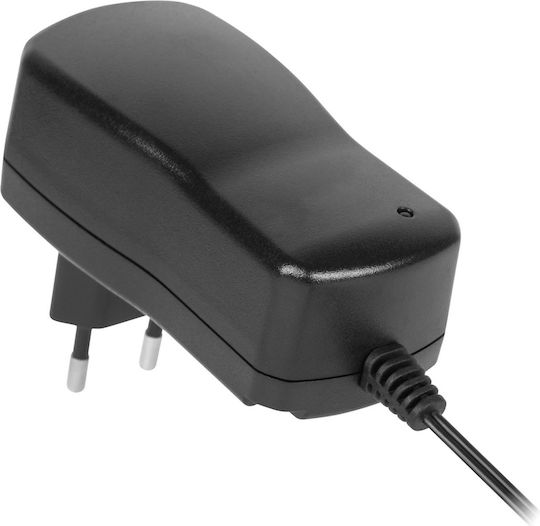

The DM Pro DM-9241MA power supply lets you select an output voltage from 9 to 24 V, with preset settings of 9, 12, 13.5, 15, 18, 20, and 24 V. It provides an output current of 1,000 mA and is suitable for devices requiring 9–24 V DC at up to 1 A.
The polarity can be reversed. The package includes a set of six interchangeable plugs and a user manual.
- Output voltage: Adjustable from 9 to 24 V
- Preset voltages: 9 V, 12 V, 13.5 V, 15 V, 18 V, 20 V, and 24 V
- Output current: 1,000 mA
- Power: 24 W
- Input voltage: 100–240 V
- Input frequency: 50/60 Hz
- Polarity: Reversible

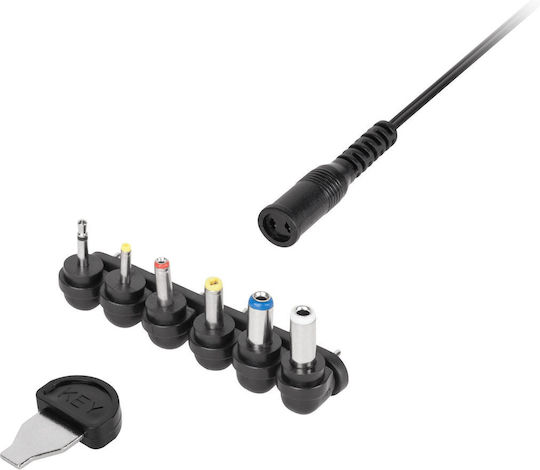

- Plugs: 3.5 × 1.35 mm, 5.5 × 2.1 mm, 5.5 × 2.5 mm, 2.35 × 0.7 mm, 4.0 × 1.7 mm, and 2.5 mm mono
- Cable length: 1 m
- Package contents: Power supply, set of 6 plugs, and user manual
- Minimum Voltage
- 9 V
- Maximum Voltage
- 9 V
- Power
- 24 W
- Adjustable
- Yes
- Plug Set
- Yes
- Number of Plugs
- -
