Description
Specifications
Linear floor drain with stainless steel frame and side outlet D40 750mm matte Titan. Essential for every bathroom, the drain features odor-proof design, low installation height, and high flow rate.
- Material: Polypropylene, stainless steel DIN 1.4301
- Load: K3 (up to 300 kg)
- Minimum installation height: 65 mm, adjustable drainage
- Connection with drainage pipes Ø 40/50 mm
- Package: Self-adhesive sealing membrane, adjustable spacers, nylon plugs, plastic key for grille removal
- Tested according to EN 1253
- Code: CH750KN1TI
Drain features:
- Low installation height of 50 mm
- Height adjustment between 65 and 87 mm
- Flow rate 30-38 l/min according to EN 1253
- Drain with water seal combined with dry wings
- Stainless steel 1.5 mm polished/matte grate
- Easy disassembly for cleaning
- Filter for retaining debris

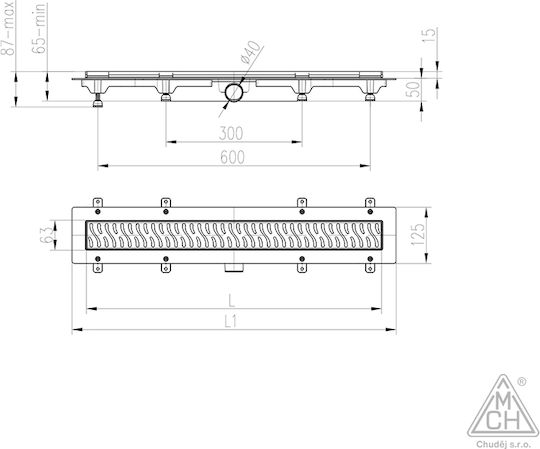

Dimensions
- Type
- Channel
- Placement
- Floor
- Material
- Stainless Steel
- Pieces
- 1 pcs
- Diameter
- 40 mm
Additional Specifications
- Double
- No
- Pop Up
- No
- Stainless Steel
- Yes
- Flexible
- No
- with Overflow
- No
- with Waste Bottle Trap
- No
