Noark 3-Poles Panel Push Switch 1000V
Electrical Panel Push Buttons Switches

Noark 3-Poles Panel Push Switch 1000V

The Noark three-pole DIN-rail surge protection device is designed to protect photovoltaic installations from overvoltage. It provides T1+T2 protection in accordance with EN 50539-22 and EN 61643-31,...

The Noark three-pole DIN-rail surge protection device is designed to protect photovoltaic installations from overvoltage. It provides T1+T2 protection in accordance with EN 50539-22 and EN 61643-31, and features a visual indicator for the status of the varistor cartridge and an auxiliary contact for electrical signalling.

  • Number of poles: 3
  • Rated voltage:...
See Description & Specifications See Description & Specifications

Learn more about invoicing
Review the product
Product report

Description & Specifications

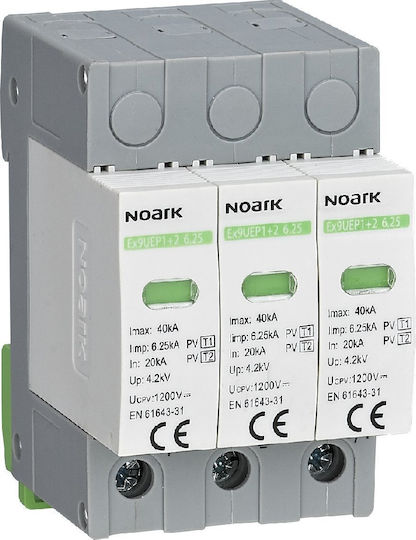

The Noark three-pole DIN-rail surge protection device is designed to protect photovoltaic installations from overvoltage. It provides T1+T2 protection in accordance with EN 50539-22 and EN 61643-31, and features a visual indicator for the status of the varistor cartridge and an auxiliary contact for electrical signalling.

  • Number of poles: 3
  • Rated voltage: 1000 V DC
  • Protection: T1+T2
  • Standards: EN 50539-22, EN 61643-31
  • Nominal discharge current: 20 kA
  • Degree of protection: IP20
  • Operating temperature: -40 to +80 °C
  • Maximum operating altitude: 2000 m
  • Width: 52.5 mm
  • Height: 83 mm
  • Front height: 45 mm
  • Mounting: On a standard 35 mm TH rail
  • Terminal type: Rail and window type
  • Connection conductor cross-section: 2.5–25 mm²
  • Screw tightening torque: 2.0–3.5 Nm
  • Connecting rail thickness: 0.14–1.5 mm
  • Climatic resistance: Up to 95% humidity

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Number of Poles
3
Nominal Voltage
1000 V

Features & Functions

WiFi
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

153,90 €
14,00 €   shipping cost
