Water Switch & Valves

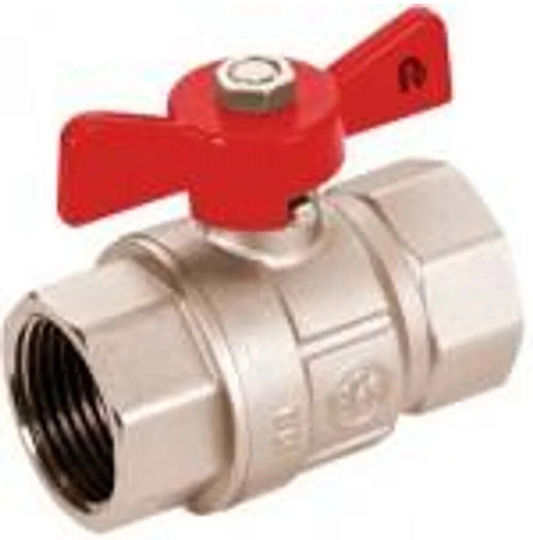

KFA Water Switch & Valves 1 Female Code: 700-120-25

The KFA 700-120-25 valve is a full-bore ball valve for water, with 1" female threads. Its body is made of brass with a sandblasted, nickel-plated finish, and flow is controlled by a ball operated by a...

The KFA 700-120-25 valve is a full-bore ball valve for water, with 1" female threads. Its body is made of brass with a sandblasted, nickel-plated finish, and flow is controlled by a ball operated by a butterfly handle.

It is suitable for water at pressures up to 1.0 MPa and temperatures up to 90 °C. It has been leak-tested at a pressure of 1.6 MPa.

  • Type:...
See Description & Specifications See Description & Specifications
22 41 €
Delivery Thu, 26 Nov - Wed, 02 Dec
14,00 €   shipping cost
Sent from Greece
From Getters 4.6 (117)
Greece
20+ pieces
See Hydraulic Equipment on the page of Getters

Learn more about invoicing

Description & Specifications

The KFA 700-120-25 valve is a full-bore ball valve for water, with 1" female threads. Its body is made of brass with a sandblasted, nickel-plated finish, and flow is controlled by a ball operated by a butterfly handle.

It is suitable for water at pressures up to 1.0 MPa and temperatures up to 90 °C. It has been leak-tested at a pressure of 1.6 MPa.

  • Type: Water ball valve
  • Connection: Female-female
  • Thread size: 1"
  • Flow: Full bore
  • Material: Brass
  • Finish: Sandblasted and nickel-plated
  • Control element: Ball
  • Handle: Aluminium, butterfly type
  • Operating pressure: Up to 1.0 MPa
  • Operating temperature: Up to 90 °C
  • Leak test pressure: 1.6 MPa
  • Nominal pressure: PN 16 bar
  • Weight: 0.42 kg
  • Manufacturing standard: AT-15-8341/2010
  • Marking: Manufacturer's mark
  • Package contents: 1 ball valve

Manufacturer

Product Number
700-120-25
with Connector
No
Gender
Female
Thread Size
1"

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
