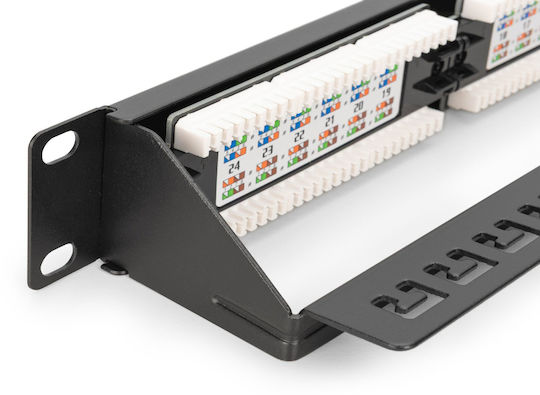

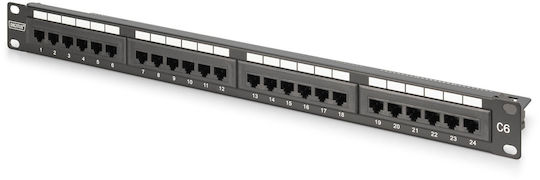

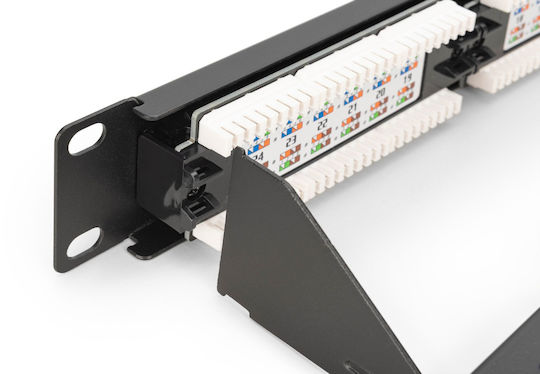

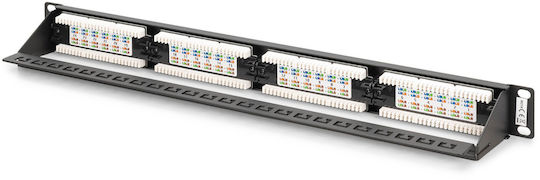

The Digitus DN-91624U-CR patch panel has 24 RJ45 (8P8C) ports and LSA terminals for connecting Cat6 network cables. It mounts in a 19" rack and is 1U high. It supports transmission speeds of up to 250 MHz and 1GBase-T and PoE applications.

The LSA terminals support wiring according to the EIA/TIA 568 A and B color codes. The housing is made of 1.5 mm cold-rolled galvanized steel, while the sockets are made of ABS UL 94V-0. The contacts are nickel- and gold-plated. The panel complies with ISO/IEC 11801 and EN 50173 standards.

• Type: Unshielded
• Ports: 24 RJ45 (8P8C)
• Cable category: Cat6
• Transmission frequency: Up to 250 MHz
• Application compatibility: 1GBase-T, PoE
• Height: 1U (45 mm)
• Width: 485 mm
• Depth: 30 mm
• Housing material: Cold-rolled galvanized steel
• Housing thickness: 1.5 mm
• Socket material: ABS UL 94V-0
• Contacts: Gold- and nickel-plated
• Retention strength: Up to 7.7 kg
• Operating temperature: -20 °C to +70 °C
• Insulation resistance: > 500 MOhm
• Contact resistance: 750
• Terminal: > 200
• Supported cables: 22-26 AWG, solid and stranded
• Standards: ISO/IEC 11801, EN 50173
• Color: Black
