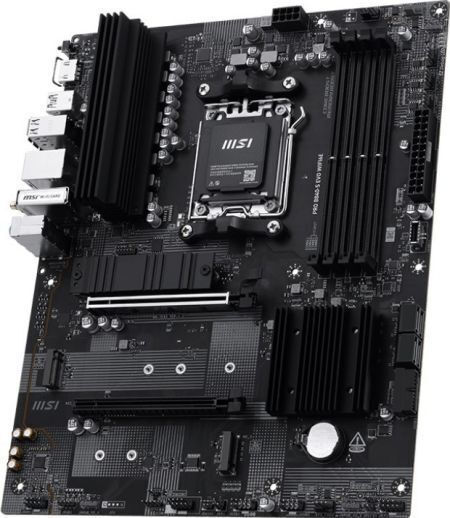

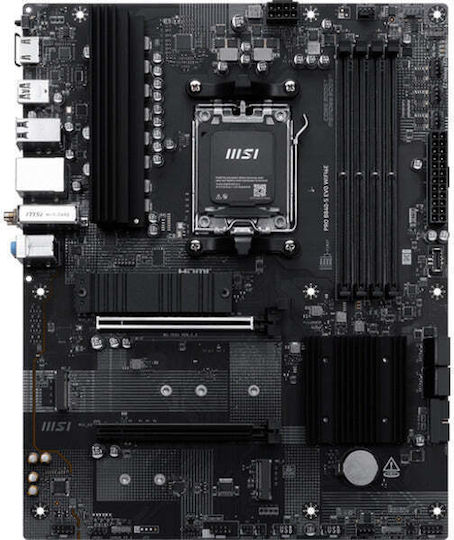

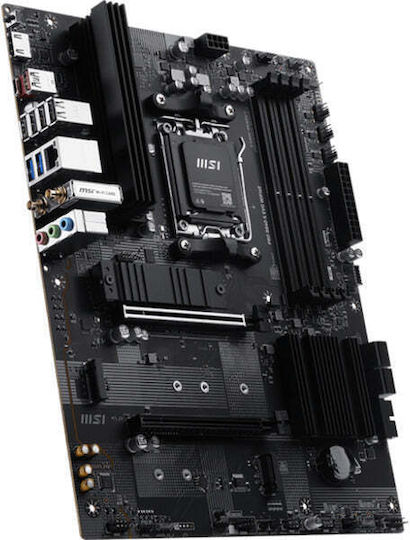

MSI PRO B840-S EVO WIFI6E Motherboard ATX with AMD AM5 Socket
Motherboards

MSI PRO B840-S EVO WIFI6E Motherboard ATX with AMD AM5 Socket

The PRO B840-S EVO WIFI6E offers a simple design with a harmonious color combination that perfectly matches black computer cases. It is built with many exclusive MSI features, Wi-Fi 6E with EZ antenna, 2.5G LAN, and PCIe 4.0

See full description

  • Socket

    The processor socket type.

    The processor we choose should have the same socket in order to fit into the motherboard.

    In addition to the socket, the motherboard chipset must also be supported by the processor.

  • Size

    The size of the motherboard is expressed with a code name (standard).
    2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

    ATX

    Classic size with full feature support and many expansion slots.

  • Usage

    Desktop

    Motherboards designed for use in desktop computers.

  • Chipset

    The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

    The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

    If the motherboard chipset is supported by the processor, then the socket will also be compatible.



  • Memory

    Memory Type and RAM Slots

    Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.
  • See all
Review the product
Product report

Description

Description

The PRO series is tailored for professionals from all walks of life. The series features impressive performance and high quality, while also aiming to provide users with an incredible experience. Users interested in productivity and efficiency can certainly rely on the MSI PRO series to assist them with multitasking and increasing efficiency.

MSI motherboards are designed with advanced hardware and technology, perfectly supporting demanding computer use in gaming and artificial intelligence. In addition, we also introduce artificial intelligence into the MSI Center and BIOS, making everything easier than before.

Artificial Intelligence Engine

provides various categories to sync the applications you want to run and automatically optimizes them to create a comfortable environment.

LAN AI MANAGER

optimizes network performance and minimizes latency, providing a seamless online experience.

AI Frozr Cooling

Automatically adjusts fan operation to ensure the system remains cool, stable, and high-performing.

Artificial Intelligence Boost

is an exclusive MSI feature. It overclocks the NPU to enhance the highest artificial intelligence performance.

Unleash and maintain maximum performance with a VRM design built with a total of 7+2+1 digital power phases. With an 8-pin power connector, the PRO B840-S EVO WIFI6E is ready for the challenge of heavy workloads.

  • Supports AMD Ryzen™ 9000 / 8000 / 7000 series desktop processors
  • Supports DDR5 memory, dual channel DDR5 8000+ MT/s (OC)
  • Extreme Performance: Direct 7+2+1 Power System with P-PAK, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB with 2oz thick copper.
  • Frozr Guard: MOSFET thermal pads rated at 7W/mK, Frozr's M.2 Shield are designed for high-performance systems and uninterrupted experience.
  • EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II, and EZ Antenna
  • Lightning-fast gaming experience: PCIe 4.0 slot and Lightning Gen 4 x4 M.2
  • 2.5G LAN solution with Wi-Fi 6E: the remarkable solution for professional and multimedia use, providing secure, stable, and high-speed networking and data transmission
  • Audio Boost: Reward your ears with studio-level audio quality for the most immersive gaming experience


Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Details

Size
ATX

Size

The size of the motherboard is expressed with a code name (standard).
2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

ATX
Classic size with full feature support and many expansion slots.
Type
Desktop

Type

Desktop

Motherboards designed for use in desktop computers.

Processor

Supported Processors
AMD
Models
Ryzen
Supported CPU Generation
Zen 4, Zen 5
Socket
AM5

Socket

The processor socket type.

The processor we choose should have the same socket in order to fit into the motherboard.

In addition to the socket, the motherboard chipset must also be supported by the processor.

Chipset

Model
AMD B840

Model

The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

If the motherboard chipset is supported by the processor, then the socket will also be compatible.



Memory

Memory type
DDR5

Memory type

The type of RAM memory that is compatible with the motherboard.

DDR5

The latest memory type, with speed starting from 4000 MT/s.
Quantity
4 DIMM Slots
Memory Speeds
4800, 5600, 5600OC, 8000OC

Memory Speeds

The supported RAM memory speeds.

The RAM and processor that will be installed in the computer should be able to reach these speeds, while special settings may be required to reach maximum speeds.
Memory Channels
Dual Channel

Memory Channels

Dual Channel

It is possible to install two identical RAM modules that will work in parallel and provide more speed to applications that require a lot of memory (e.g. video editing). 2. For example, if two identical 8GB RAM modules are installed in a dual channel motherboard, they will perform better than installing one 16GB module.

Internal Connectors

PCI Express x16 4.0
2 Slot

PCI Express x16 4.0

The available PCI Express x16 4.0 expansion card slots of the motherboard.
SATA III 6Gb/s
4 Port

SATA III 6Gb/s

Modern hard drive connection standard.

Most SSD hard drives require this standard to perform at their maximum potential.
M.2 Type
1 PCIe 3.0 Port, 2 PCIe 4.0 Ports

M.2 Type

The number and type of available slots for installing M.2 SSD units.
M.2 Slots
0

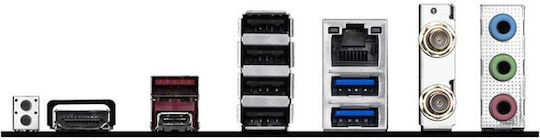

External Connectors

Rear USB-A outputs
3 USB 3.2 Ports, 4 USB 2.0 Ports
Rear USB-C outputs
1 USB 3.2 Port
Ethernet (LAN)
1

Ethernet (LAN)

The number of ethernet ports for wired connection to a network that the motherboard has on its back panel.
Screen Connections
HDMI

Specifications

RGB Lighting
No
WiFi/Bluetooth
Yes
Extra
Bios Flashback, Clear CMOS button, RGB Header

Extra

Bios Flashback

Ability to update the BIOS without requiring a CPU and RAM installed on the motherboard. This advanced feature is intended for experienced users and is useful for supporting newer processors on older motherboards. Please refer to the manufacturer's instructions for the process, as it may vary between manufacturers.

For example, if you want to install a Ryzen 5000 series processor on a chipset that only supports it after a BIOS upgrade, BIOS Flashback can be used without having an older processor on the motherboard.

Clear CMOS button

Button for clearing the CMOS memory of the motherboard. Advanced function for experienced users that can also be achieved by simply removing and reinserting the motherboard battery. Useful function if something goes wrong during the overclocking process or BIOS settings for a reset to the original state.

RGB Header
Special connector for connecting LED strips or connecting other parts with RGB that require separate power supply.

Sound

Sound Card Channels
7.1

Top Specs

Memory
4x DDR5

Memory

Memory Type and RAM Slots

Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Product Details

Size
ATX

Size

The size of the motherboard is expressed with a code name (standard).
2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

ATX
Classic size with full feature support and many expansion slots.
Type
Desktop

Type

Desktop

Motherboards designed for use in desktop computers.

Processor

Supported Processors
AMD
Models
Ryzen
Supported CPU Generation
Zen 4, Zen 5
Socket
AM5

Socket

The processor socket type.

The processor we choose should have the same socket in order to fit into the motherboard.

In addition to the socket, the motherboard chipset must also be supported by the processor.

Chipset

Model
AMD B840

Model

The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

If the motherboard chipset is supported by the processor, then the socket will also be compatible.



Memory

Memory type
DDR5

Memory type

The type of RAM memory that is compatible with the motherboard.

DDR5

The latest memory type, with speed starting from 4000 MT/s.
Quantity
4 DIMM Slots
Memory Speeds
4800, 5600, 5600OC, 8000OC

Memory Speeds

The supported RAM memory speeds.

The RAM and processor that will be installed in the computer should be able to reach these speeds, while special settings may be required to reach maximum speeds.
Memory Channels
Dual Channel

Memory Channels

Dual Channel

It is possible to install two identical RAM modules that will work in parallel and provide more speed to applications that require a lot of memory (e.g. video editing). 2. For example, if two identical 8GB RAM modules are installed in a dual channel motherboard, they will perform better than installing one 16GB module.

Internal Connectors

PCI Express x16 4.0
2 Slot

PCI Express x16 4.0

The available PCI Express x16 4.0 expansion card slots of the motherboard.
SATA III 6Gb/s
4 Port

SATA III 6Gb/s

Modern hard drive connection standard.

Most SSD hard drives require this standard to perform at their maximum potential.
M.2 Type
1 PCIe 3.0 Port, 2 PCIe 4.0 Ports

M.2 Type

The number and type of available slots for installing M.2 SSD units.
M.2 Slots
0

External Connectors

Rear USB-A outputs
3 USB 3.2 Ports, 4 USB 2.0 Ports
Rear USB-C outputs
1 USB 3.2 Port
Ethernet (LAN)
1

Ethernet (LAN)

The number of ethernet ports for wired connection to a network that the motherboard has on its back panel.
Screen Connections
HDMI

Specifications

RGB Lighting
No
WiFi/Bluetooth
Yes
Extra
Bios Flashback, Clear CMOS button, RGB Header

Extra

Bios Flashback

Ability to update the BIOS without requiring a CPU and RAM installed on the motherboard. This advanced feature is intended for experienced users and is useful for supporting newer processors on older motherboards. Please refer to the manufacturer's instructions for the process, as it may vary between manufacturers.

For example, if you want to install a Ryzen 5000 series processor on a chipset that only supports it after a BIOS upgrade, BIOS Flashback can be used without having an older processor on the motherboard.

Clear CMOS button

Button for clearing the CMOS memory of the motherboard. Advanced function for experienced users that can also be achieved by simply removing and reinserting the motherboard battery. Useful function if something goes wrong during the overclocking process or BIOS settings for a reset to the original state.

RGB Header
Special connector for connecting LED strips or connecting other parts with RGB that require separate power supply.

Sound

Sound Card Channels
7.1

Top Specs

Memory
4x DDR5

Memory

Memory Type and RAM Slots

Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

Description

The PRO series is tailored for professionals from all walks of life. The series features impressive performance and high quality, while also aiming to provide users with an incredible experience. Users interested in productivity and efficiency can certainly rely on the MSI PRO series to assist them with multitasking and increasing efficiency.

MSI motherboards are designed with advanced hardware and technology, perfectly supporting demanding computer use in gaming and artificial intelligence. In addition, we also introduce artificial intelligence into the MSI Center and BIOS, making everything easier than before.

Artificial Intelligence Engine

provides various categories to sync the applications you want to run and automatically optimizes them to create a comfortable environment.

LAN AI MANAGER

optimizes network performance and minimizes latency, providing a seamless online experience.

AI Frozr Cooling

Automatically adjusts fan operation to ensure the system remains cool, stable, and high-performing.

Artificial Intelligence Boost

is an exclusive MSI feature. It overclocks the NPU to enhance the highest artificial intelligence performance.

Unleash and maintain maximum performance with a VRM design built with a total of 7+2+1 digital power phases. With an 8-pin power connector, the PRO B840-S EVO WIFI6E is ready for the challenge of heavy workloads.

  • Supports AMD Ryzen™ 9000 / 8000 / 7000 series desktop processors
  • Supports DDR5 memory, dual channel DDR5 8000+ MT/s (OC)
  • Extreme Performance: Direct 7+2+1 Power System with P-PAK, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB with 2oz thick copper.
  • Frozr Guard: MOSFET thermal pads rated at 7W/mK, Frozr's M.2 Shield are designed for high-performance systems and uninterrupted experience.
  • EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II, and EZ Antenna
  • Lightning-fast gaming experience: PCIe 4.0 slot and Lightning Gen 4 x4 M.2
  • 2.5G LAN solution with Wi-Fi 6E: the remarkable solution for professional and multimedia use, providing secure, stable, and high-speed networking and data transmission
  • Audio Boost: Reward your ears with studio-level audio quality for the most immersive gaming experience


Manufacturer

Manufacturer Details

Warnings & Safety Information
