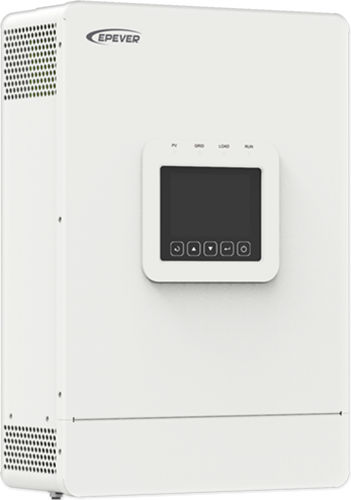

The EPEVER QI1012-0610C hybrid inverter combines a 1000 W pure sine wave output, an MPPT charge controller and an AC charger. It manages energy from photovoltaic panels, the battery and the grid, and operates with or without a lithium or lead-acid battery. It features protection against overcharging, over-discharging and overheating, as well as automatic generator start and stop control.

The colour LCD displays real-time data, and the logging history stores up to 25,000 records. The RS485 port supports optional WiFi, 4G or TCP connectivity. It is suitable for off-grid or hybrid energy systems, such as those in holiday homes, caravans and remote installations.

• Type: Pure sine wave
• Nominal input voltage: 12 V
• Rated power: 1000 W
• Power supply: Single-phase
• Output voltage: 220 V / 230 V AC
• Charging technology: MPPT
• Maximum photovoltaic input voltage: 95 V
• Maximum photovoltaic charging current: 60 A
• Battery type: Lithium / lead-acid
• Nominal battery voltage: 12 V DC
• Maximum total charging current: 60 A
• MPPT efficiency: >99.5%
• Grid charging current: Adjustable
• Display: 3.5" colour LCD
• Communication port: RS485
• Logging history: Up to 25,000 records
• Operating temperature range: -20 °C to +50 °C
• Protection rating: IP20
• Dimensions: 380 × 265 × 110 mm
• Weight: 8 kg
• Certifications: EN IEC 61000-6-2; EN IEC 61000-6-4; EN IEC 61000-3-2; EN 61000-3-3; IEC 62109-1; IEC 62109-2
