On-Off switch Limit 1pcs
On-Off switches

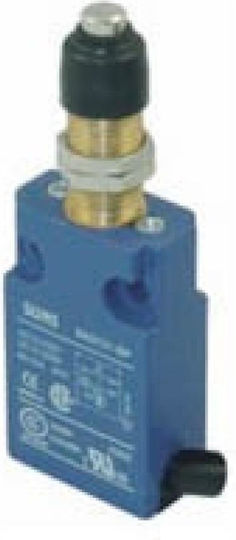

On-Off switch Limit 1pcs Code: 03.015.0083

The cable-operated limit switch with push button is equipped with a nut and 1NO+1NC contacts. The connection cable is pre-wired and 2 m long for improved sealing.

  • Type: Limit switch
  • Quantity: 2
  • Rated...

The cable-operated limit switch with push button is equipped with a nut and 1NO+1NC contacts. The connection cable is pre-wired and 2 m long for improved sealing.

  • Type: Limit switch
  • Quantity: 2
  • Rated current: 10 A
  • Rated voltage: 300 VAC
  • Insulation resistance: >100 MΩ at 500 VDC
  • Dielectric strength: 1000 VAC for 60″ between live parts and 2000 VAC for 60″...
See full description See full description
57 00 €
Delivery Wed, 11 Nov - Tue, 17 Nov
14,00 €   shipping cost
Sent from Greece
From Galazoula 5.0 (5)
5.0 (5 reviews)
Greece
1 piece
See Microelectronic Components on the page of Galazoula

Shop selection criteria

Why do we recommend buying from this shop?

We don’t only look at the price. We weigh different factors to find an offer that combines a good price, fast delivery and a reliable purchase.

  • Product price

    We calculate the total price you will pay and any discounts available from the shop.

  • Shipping & delivery time

    We check how quickly the product can be shipped and when you will receive it, based on your address.

  • Shop reliability

    We look at how often shops complete their orders successfully and how consistently they serve their customers.

  • Official reseller

    Where available, we take into account whether the shop is an official reseller of the brand.

Learn more about invoicing
Review the product
Product report

Description

Description

The cable-operated limit switch with push button is equipped with a nut and 1NO+1NC contacts. The connection cable is pre-wired and 2 m long for improved sealing.

  • Type: Limit switch
  • Quantity: 2
  • Rated current: 10 A
  • Rated voltage: 300 VAC
  • Insulation resistance: >100 MΩ at 500 VDC
  • Dielectric strength: 1000 VAC for 60″ between live parts and 2000 VAC for 60″ between non-live parts
  • Mechanical life: 10⁷ operations
  • Electrical life: 5×10⁵ operations
  • Protection rating: IP67
  • Standards: IEC 60947-5-1/EN90947-5-1/EN60947-5-1
  • Connection cable: 5×0.75 mm²
