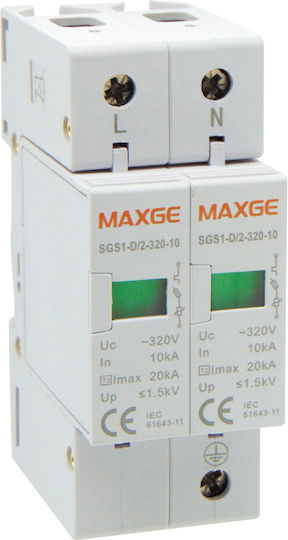

2-Poles Inspired T2 Panel Lightning Protection 20kA
Panel Lightning Protection

2-Poles Inspired T2 Panel Lightning Protection 20kA Code: 03.018.0296

Lightning protection bar, bipolar (2P)

Specifications:

  • IEC61643-1
  • Protection: Overvoltage and instantaneous overload
  • Width: 17.5mm per pole
  • Installation: 35mm DIN rail
  • Number of poles: 2P
  • Discharge...

Lightning protection bar, bipolar (2P)

Specifications:

  • IEC61643-1
  • Protection: Overvoltage and instantaneous overload
  • Width: 17.5mm per pole
  • Installation: 35mm DIN rail
  • Number of poles: 2P
  • Discharge current (Inormal/IMax): 5/20kA
  • Maximum continuous operating voltage (U c): 320V
  • Protection level Up: <1.5kV
  • Ambient temperature: -40° to +70°C
  • Reaction time: <25ns
See full description See full description

Learn more about invoicing
Review the product
Product report

Description

Description

Lightning protection bar, bipolar (2P)

Specifications:

  • IEC61643-1
  • Protection: Overvoltage and instantaneous overload
  • Width: 17.5mm per pole
  • Installation: 35mm DIN rail
  • Number of poles: 2P
  • Discharge current (Inormal/IMax): 5/20kA
  • Maximum continuous operating voltage (U c): 320V
  • Protection level Up: <1.5kV
  • Ambient temperature: -40° to +70°C
  • Reaction time: <25ns

Manufacturer

OEM

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
03.018.0296
Number of Poles
2
Type
T2

Type

T2

It has the ability to discharge current from indirect lightning strikes, network overvoltages, and arming/disarming of coupling devices in an installation. It is installed on the main panel of buildings.
Replacement Cartridge
No
Maximum Discharge Current (kA)
20

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Lightning protection bar, bipolar (2P)

Specifications:

  • IEC61643-1
  • Protection: Overvoltage and instantaneous overload
  • Width: 17.5mm per pole
  • Installation: 35mm DIN rail
  • Number of poles: 2P
  • Discharge current (Inormal/IMax): 5/20kA
  • Maximum continuous operating voltage (U c): 320V
  • Protection level Up: <1.5kV
  • Ambient temperature: -40° to +70°C
  • Reaction time: <25ns

Manufacturer

OEM

Manufacturer Details

Warnings & Safety Information
Product Number
03.018.0296
Number of Poles
2
Type
T2

Type

T2

It has the ability to discharge current from indirect lightning strikes, network overvoltages, and arming/disarming of coupling devices in an installation. It is installed on the main panel of buildings.
Replacement Cartridge
No
Maximum Discharge Current (kA)
20

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
