Wide Application: Ideal for various high and low pressure mechanical hoses, including oil, gas, water hoses, as well as hydraulic guide hoses and gasoline pipes. Widely used in vehicles and hydraulic systems.

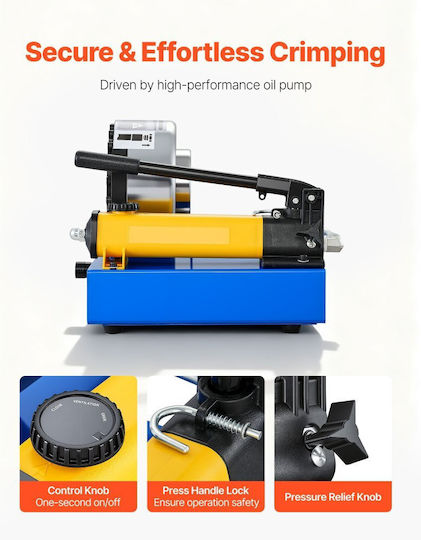

Flexible Operation: Operates with a manual hydraulic system and does not require electricity. Includes a rotary caliper for precise adjustments and a box with molds for optimal tool organization.

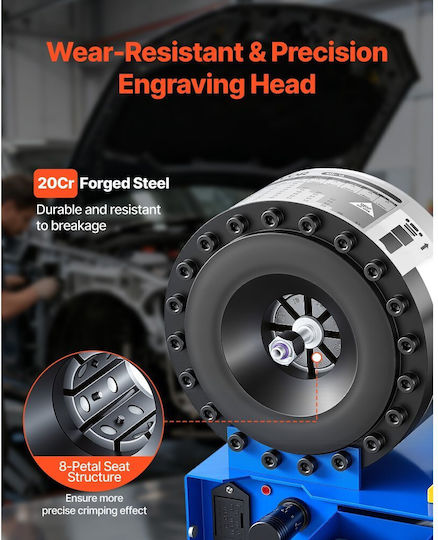

Durability & Robustness: Made from forged 20Cr steel, the head offers excellent wear and fracture resistance, with an 8-blade structure for precise compression.

Effective Compression: The manual hydraulic press provides steady compression force, ensuring a strong and reliable connection.

Features:

• Compression Range: 0.24 - 1.1 inches / 6 - 28 mm

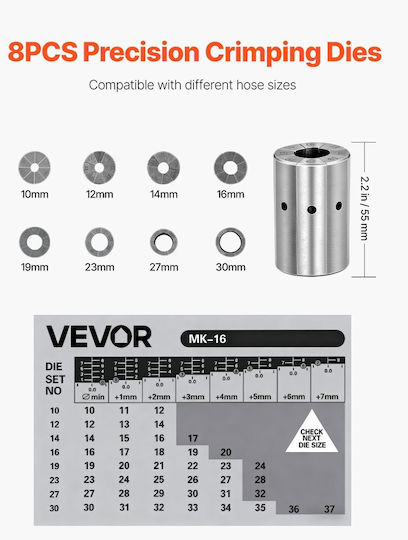

• Number of Compression Molds: 8 (10mm, 12mm, 14mm, 16mm, 19mm, 23mm, 27mm, 30mm)
• Maximum Opening Without Molds: 2.28 in / 58 mm
• Hydraulic Oil Tank Capacity: 0.13 gal / 0.5 L
• Model Number: MK-16

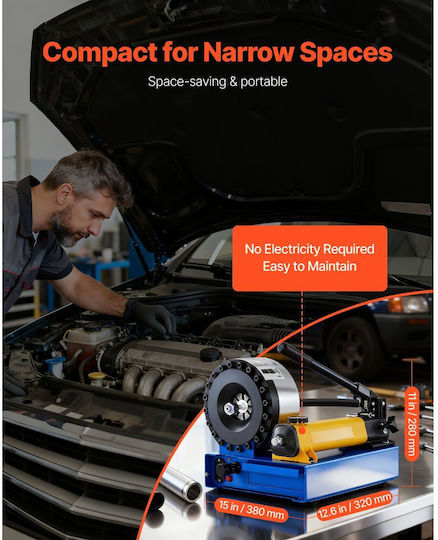

• Dimensions: 14.96 x 12.6 x 11 inches / 380 x 320 x 280 mm
• Net Weight: 67.9 lbs / 30.8 kg

Product Type: High-Pressure Hydraulic Pipe Press
