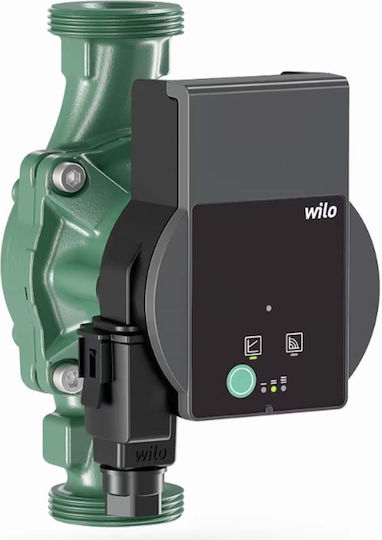

Wilo Electronic Circulator Pump Heating / Air Condition 180mm
Circulator Pumps

Wilo Electronic Circulator Pump Heating / Air Condition 180mm Code: 4232691

The electronically controlled Wilo-Atmos PICO heating and air-conditioning circulator uses a wet rotor and an ECM technology motor that is resistant to locked-rotor current. The integrated electronic...

The electronically controlled Wilo-Atmos PICO heating and air-conditioning circulator uses a wet rotor and an ECM technology motor that is resistant to locked-rotor current. The integrated electronic system continuously adjusts the output to control differential pressure. It features screw connections and requires little maintenance.

  • Type: Electronic...
See full description See full description
149 00 €
Delivery Wed, 04 Nov - Fri, 06 Nov
14,00 €   shipping cost
Sent from Greece
From Aravidis 4.9 (152)
4.9 (152 reviews)
Greece
5 pieces
See Central Heating on the page of Aravidis

Learn more about invoicing
Review the product
Product report

Description

Description

The electronically controlled Wilo-Atmos PICO heating and air-conditioning circulator uses a wet rotor and an ECM technology motor that is resistant to locked-rotor current. The integrated electronic system continuously adjusts the output to control differential pressure. It features screw connections and requires little maintenance.

  • Type: Electronic wet-rotor circulator
  • Application: Heating and air conditioning
  • Maximum head: 4.1 m
  • Maximum flow rate: 3.0 m³/h
  • Maximum operating pressure: PN 10 bar
  • Fluid temperature: -10 °C to 95 °C
  • Ambient temperature: -10 °C to 40 °C
  • Energy Efficiency Index (EEI): ≤0.20
  • Power supply: 1~230 V ±10%, 50/60 Hz
  • Rated power P2: 15 W
  • Power consumption P1: 4–20 W
  • Rotational speed: 700–3400 1/min
  • Connections: G 1½ discharge and G 1½ suction
  • Installation length: 180 mm
  • Pump housing material: Grey cast iron
  • Impeller material: PP-GF40
  • Shaft material: Stainless steel
  • Bearing material: Metal-impregnated sintered carbon
  • Cable gland: 1 x PG11
  • Insulation class: F
  • Protection rating: IPX2D
  • Standards: EN 61000-6-3, EN 61000-6-2, EN 61800-3

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
4232691

Product Details

Electronic
Yes

Electronic

Latest technology browsers. They provide high energy efficiency and consume up to 80% less electricity.
Application
Heating, Air Conditioning

Application

Heating
It concerns installations of closed circuit hot and cold water.
Air Conditioning
This concerns closed circuit installations for hot and cold water.
Maximum Pressure Head (m)
4.1 m

Maximum Pressure Head (m)

A professional engineer is required for the calculation. It is the sum of flow resistances and does not concern the static height of the installation.

Dimensions

Connection Diameter
-
Length
180 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
