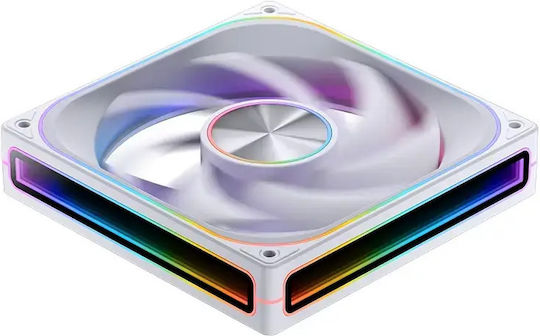

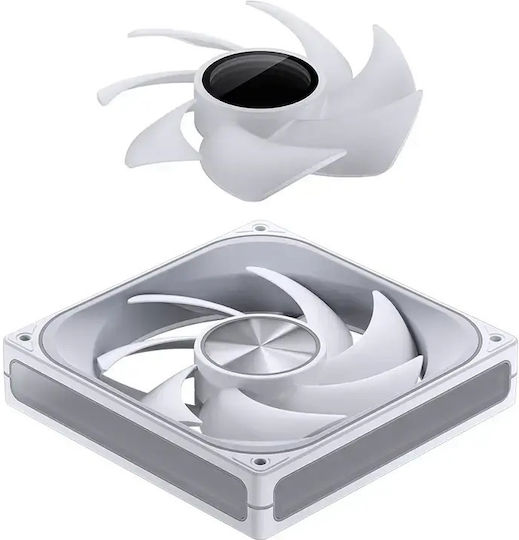

Jonsbo Case Fan 140mm (1800rpm / 73.82cfm) with ARGB Lighting and 4-Pin PWM Connection White
Case Fans

Jonsbo Case Fan 140mm (1800rpm / 73.82cfm) with ARGB Lighting and 4-Pin PWM Connection White

Upgrade your computer's cooling and aesthetics. This 140mm fan provides powerful airflow, quiet operation, and impressive programmable ARGB lighting, making it perfect for high-performance systems and modding enthusiasts.

See full description
Review the product
Product report

Description

Description

The JONSBO ZA-140W fan is an excellent choice for those seeking enhanced cooling and impressive aesthetics for their computer. With dimensions of 140mm, it provides significant airflow, effectively helping to maintain low temperatures even in demanding systems. The PWM 4PIN technology allows precise control of rotational speed, from 700 to 1800 RPM, ensuring the perfect balance between performance and quiet operation, with noise levels ranging from 18.3 to 32.2 dB(A).

Beyond its cooling capabilities, the ZA-140W stands out for its programmable ARGB 5V lighting. This means you can fully customize the colors and lighting effects, creating a unique atmosphere inside your case, synchronized with other compatible components. The ARGB 3PIN connection makes integration with modern motherboards easy. Its construction guarantees longevity, with an average time to failure (MTTF) of over 20,000 hours, offering reliability and durability over time.

Features

  • Dimensions: 140mm (L) * 140mm (W) * 28mm (H)
  • Speed: 700-1800 RPM ( ±10% )
  • Air Flow: 33.70-73.82 CFM
  • Noise Level: 18.3-32.2 dB(A)(MAX)
  • Voltage: Fan DC12V LED 5V
  • Current: Fan 0.13A (MAX) LED 0.64A (MAX)
  • Input Power: Fan 1.56W (MAX) LED 3.2W (MAX)
  • Static Pressure: 0.47-1.94 mmH2O
  • MTTF: ≥ 20000h Room Temperature: 25℃
  • PWM 4PIN ARGB 3PIN

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Main Specifications

Dimension
140 mm

Dimension

The diameter of the fan in millimeters. The larger the fan, the more effective the cooling and the quieter its operation compared to a smaller one. The most common size is 120mm, with some computer cases supporting larger sizes such as 140mm.
Colour
White
Packaging
1 pcs

Technical Specifications

Fan Speed (Max)
1800 rpm

Fan Speed (Max)

The maximum rotations at which the fan turns. To reduce the rotations, it should be connected to a speed controller, either through a port on the motherboard that supports this function. Usually, the higher the rotations, the greater the flow but also the noise. As long as the needs for noise and air flow are covered, the rotations do not need to be taken into account.
Noise Level (Max)
32.2 dB

Noise Level (Max)

The noise produced by the fan when operating at maximum speed.

A medium noise fan produces 20-28dB, while those below 20dB are considered quiet.
Air Flow (Max)
73.82 cfm

Air Flow (Max)

The amount of air that the fan can push in one minute (cubic feet per minute) when operating at maximum speed.

The higher the number, the more effective the cooling that the fan can provide.

Higher quality fans can produce the same airflow with less noise and speed.
Connection
4-Pin PWM

Connection

4-Pin PWM
Plug for connecting the fan to the motherboard with the ability to control the fan speed. Usually used for cooling the processor. 2. It can also be connected to a 3-Pin socket but will always operate at maximum speed.
LED Color
ARGB
Reverse Blade
No

Reverse Blade

Reverse blade fans reverse the airflow, allowing for intake without the interference of the frame, which reduces aerodynamic turbulence and noise. Additionally, apart from enhancing aesthetics and lighting, they make it easier to clean the blades and offer better cable management, as the wiring remains hidden behind the frame.
Air Pressure
-

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The JONSBO ZA-140W fan is an excellent choice for those seeking enhanced cooling and impressive aesthetics for their computer. With dimensions of 140mm, it provides significant airflow, effectively helping to maintain low temperatures even in demanding systems. The PWM 4PIN technology allows precise control of rotational speed, from 700 to 1800 RPM, ensuring the perfect balance between performance and quiet operation, with noise levels ranging from 18.3 to 32.2 dB(A).

Beyond its cooling capabilities, the ZA-140W stands out for its programmable ARGB 5V lighting. This means you can fully customize the colors and lighting effects, creating a unique atmosphere inside your case, synchronized with other compatible components. The ARGB 3PIN connection makes integration with modern motherboards easy. Its construction guarantees longevity, with an average time to failure (MTTF) of over 20,000 hours, offering reliability and durability over time.

Features

  • Dimensions: 140mm (L) * 140mm (W) * 28mm (H)
  • Speed: 700-1800 RPM ( ±10% )
  • Air Flow: 33.70-73.82 CFM
  • Noise Level: 18.3-32.2 dB(A)(MAX)
  • Voltage: Fan DC12V LED 5V
  • Current: Fan 0.13A (MAX) LED 0.64A (MAX)
  • Input Power: Fan 1.56W (MAX) LED 3.2W (MAX)
  • Static Pressure: 0.47-1.94 mmH2O
  • MTTF: ≥ 20000h Room Temperature: 25℃
  • PWM 4PIN ARGB 3PIN

Manufacturer

Manufacturer Details

Warnings & Safety Information

Main Specifications

Dimension
140 mm

Dimension

The diameter of the fan in millimeters. The larger the fan, the more effective the cooling and the quieter its operation compared to a smaller one. The most common size is 120mm, with some computer cases supporting larger sizes such as 140mm.
Colour
White
Packaging
1 pcs

Technical Specifications

Fan Speed (Max)
1800 rpm

Fan Speed (Max)

The maximum rotations at which the fan turns. To reduce the rotations, it should be connected to a speed controller, either through a port on the motherboard that supports this function. Usually, the higher the rotations, the greater the flow but also the noise. As long as the needs for noise and air flow are covered, the rotations do not need to be taken into account.
Noise Level (Max)
32.2 dB

Noise Level (Max)

The noise produced by the fan when operating at maximum speed.

A medium noise fan produces 20-28dB, while those below 20dB are considered quiet.
Air Flow (Max)
73.82 cfm

Air Flow (Max)

The amount of air that the fan can push in one minute (cubic feet per minute) when operating at maximum speed.

The higher the number, the more effective the cooling that the fan can provide.

Higher quality fans can produce the same airflow with less noise and speed.
Connection
4-Pin PWM

Connection

4-Pin PWM
Plug for connecting the fan to the motherboard with the ability to control the fan speed. Usually used for cooling the processor. 2. It can also be connected to a 3-Pin socket but will always operate at maximum speed.
LED Color
ARGB
Reverse Blade
No

Reverse Blade

Reverse blade fans reverse the airflow, allowing for intake without the interference of the frame, which reduces aerodynamic turbulence and noise. Additionally, apart from enhancing aesthetics and lighting, they make it easier to clean the blades and offer better cable management, as the wiring remains hidden behind the frame.
Air Pressure
-

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
