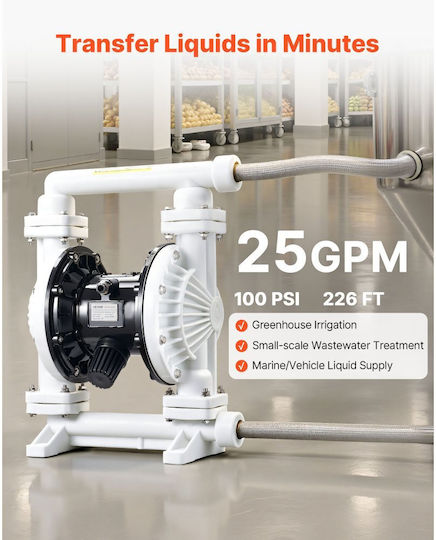

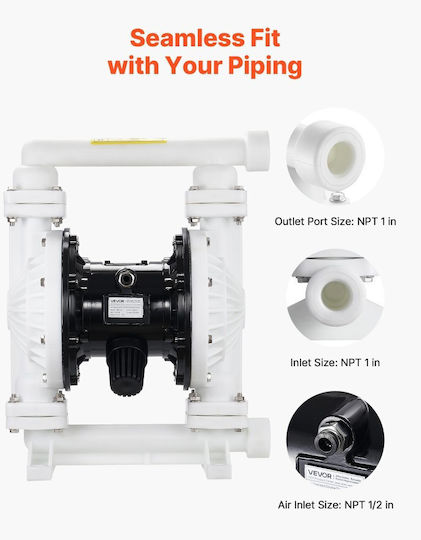

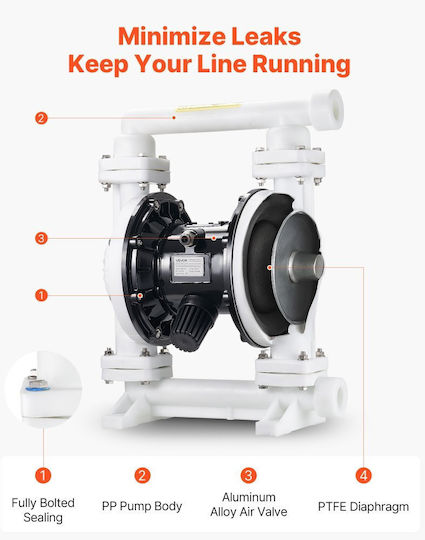

The Vevor QBK-25 transfer pump is air-operated and features a PP body and PTFE diaphragms for heat and corrosion resistance. Its fully threaded construction helps prevent leaks, while the industry-standard ports connect to existing pipes and fittings. It can be used to transfer oils, fuels, beverages, and water, but is not recommended for abrasive media or liquids above 60 °C.
- Operating type: Pneumatic
- Materials: PP, aluminum alloy, and PTFE
- Maximum flow rate: 25 GPM / 95 L/min
- Maximum pressure: 100 PSI
- Maximum pumping height: 226 ft / 68.88 m
- Maximum suspended solids size: 0.1 inches / 2.5 mm
- Suitable liquids: Olive oil, petroleum, diesel, fuels, milk, food products, water, used oils, hydraulic oil, gasoline, detergents, beverages, acidic and alkaline liquids
- Maximum liquid temperature: 60 °C
- Suitable applications: Petroleum industry, metallurgy, printing, water treatment, and automotive industry
Dimensions
- Pump Body Material
- -
Suitable for:
- Wine / Must
- No
- Olive Oil / Oil
- Yes
- Oil / Diesel / Fuels
- Yes
- Milk / Food
- Yes
- Chemicals / Acids / AdBlue
- No
- Water (Fresh / Sea)
- Yes
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
