Electrical Panel Accessories

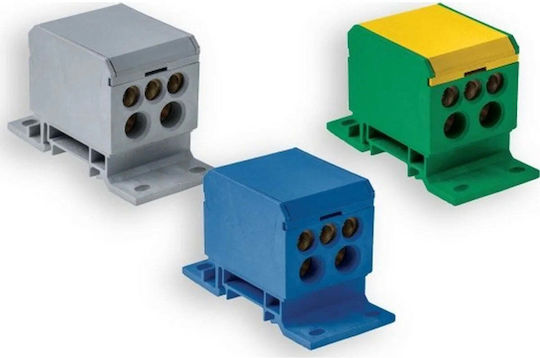

Pawbol Distribution Block 160a 1p 2x6-70/2x2.5-50 1x2.5-25/n E.4093/n

The Pawbol E.4093/N single-pole distribution block distributes electrical power via screw connections and is mounted on a DIN rail. The insulating cover provides protection against contact.

  • Rated...

The Pawbol E.4093/N single-pole distribution block distributes electrical power via screw connections and is mounted on a DIN rail. The insulating cover provides protection against contact.

  • Rated current: 160 A
  • Operating voltage: 600 V
  • Protection rating: IP20
  • Number of poles: 1
  • Connections over 25 mm²: 4
  • 25 mm² connections: 1
  • Connection type: Screw
  • ...
See full description See full description
25 90 €
Delivery Tue, 17 Nov - Mon, 23 Nov
14,00 €   shipping cost
Sent from Greece
From Getters 4.6 (112)

Learn more about invoicing

Description

The Pawbol E.4093/N single-pole distribution block distributes electrical power via screw connections and is mounted on a DIN rail. The insulating cover provides protection against contact.

  • Rated current: 160 A
  • Operating voltage: 600 V
  • Protection rating: IP20
  • Number of poles: 1
  • Connections over 25 mm²: 4
  • 25 mm² connections: 1
  • Connection type: Screw
  • Mounting: On a DIN rail
  • Cover: Insulating, contact protection
  • Width: 80 mm
  • Depth: 50 mm
  • Height: 40 mm
  • Weight: 0.150 kg

Manufacturer
