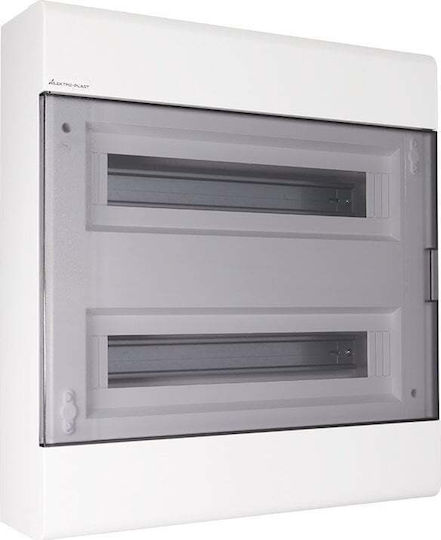

The Elektro-Plast SRn-36/2 electrical distribution board is a surface-mounted, modular enclosure with two rows of 18 modules each. Its plastic casing features a transparent tinted door and can be sealed, while the embossed sections on the sides make it easier to insert cables or installation conduits.
The TH 35/7.5 rail allows the installation of overcurrent protective devices and residual current circuit breakers. The board is designed for indoor installation on walls made of materials that are difficult to ignite.
- Mounting: Surface-mounted
- Rows: 2
- Modules per row: 18
- Colour: Transparent
- Protection rating: IP40
- Enclosure material: Plastic
- Doors: 1, transparent tinted
- Locking: Snap-fit
- Sealable: Yes
- Rail: TH 35/7.5 (Euroszyna)
- PE/N terminals: Yes
- Rated current: 100 A
- Rated voltage: 400 V
- Rated insulation voltage Ui: 500 V
- Dimensions: 420 × 457 × 109 mm
- Weight: 2.9 kg
- Standard: PN-EN 62208-2011
- Certification: CE
Specifications
- Placement
- Wall mounted
- Number of Rows
- 2
- Number of Elements per Row
- 18
- Colour
- Transparent
- Protection Certification
- IP40
Attributes
- with Fuses
- No
- Waterproof
- No
- Cabinet
- No
