- Product Number
- 90YV0L76-M0NM00
Main Specifications
- Processor Manufacturer
- AMD
- Chipset Model
- Radeon RX 9070 XT
- Interface
- PCI Express x16 5.0
- Processor Speed (Base Clock)
- 3060 MHz
- Maximum Resolution
- 7680x4320 pixels
- Parallel Processing Technology
- Not Supported
- Type
- High Performance
- Device Group
- Gaming
- Colour
- Black
Special Features
- RGB Lighting
- Yes
- OverClock (OC)
- Yes
- Air-cooled
- Yes
- Low Profile
- No
- Passive Cooling
- No
- Water-cooled
- No
- External Graphics Card (eGPU)
- No
- LHR
- No
Memory
- Memory Capacity
- 16 GB
- Memory type
- GDDR6
- Memory Speed
- 20 Gbps
- Memory bus
- 256 bit
Connectivity
- HDMI
- 1
- DisplayPort
- 3
- Dual Link DVI
- No
System Requirements
- Minimum Power Supply
- 850 W
- Power Connectors
- 3x 8-pin
Dimensions
- Length
- 330 mm
- Height
- 140 mm
- Thickness
- 62.5 mm
Top Specs
- Memory
- 16GB, GDDR6
- Connectivity
- HDMI, DisplayPort
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
Description
The graphics card features the Radeon RX 9070 XT chipset, known for its efficiency and its capability to compete at high-performance standards. With a memory capacity of 16GB GDDR6, it is an excellent choice for demanding games and applications that run at high resolutions.
The card connects via the latest version of PCI Express x16 5.0, offering double the bandwidth compared to PCIe 4.0 for faster data transfer. The maximum supported resolution reaches 7680x4320, allowing for stunning graphics quality.
Notably, the card comes with additional features such as:
- Supports overclocking, delivering higher performance than conventional versions.
- Includes RGB lighting, adding aesthetic appeal to your computer.
- It is air-cooled, ensuring proper temperature during demanding use.
Its processor speed reaches 3060 MHz, with memory speed at 20 Gbps and a memory bus width of 256-bit, making it capable of processing large amounts of data efficiently. The minimum required power supply is 850W and it needs 3x 8-pin connectors for power.
It also supports 1 HDMI and 3 DisplayPort outputs, ensuring easy connectivity to multiple monitors. If you wish to enjoy the latest games at high resolutions, this graphics card is definitely a very good choice.
Comparison with the previous model
The AMD Radeon RX 9070 XT, based on the RDNA 4 architecture, presents significant improvements compared to the previous generation, such as the RX 7900 XT with RDNA 3 architecture. Despite the increase in performance, the RX 9070 XT consumes slightly more power, with a TDP of 304W compared to 300W for the RX 7900 XT.
Additionally, the RX 9070 XT incorporates FSR 4 technology for improved AI upscaling and features an upgraded media engine unit for better game recording quality.
AMD FidelityFX Super Resolution
The AMD Radeon™ provides everything you need to keep your system fast for many years. Combine it with AMD Ryzen™ 9000 series processors that feature PCI Express® Gen 5 support and the latest AMD Smart Access Memory™3 technology to fully utilize the performance of the AM5 platform. Take advantage of Radeon and Ryzen AI technologies that support AI and upgrade to next-generation displays with DisplayPort™ 2.1 support and video memory up to 16 GB to enjoy AAA games in all their visual glory, now and for many years to come.
Everything you need for ultra-fast gaming
Speed, performance, and graphics work together for smooth frames and total immersion. The ultra-fast graphics of the Radeon™ RX 9000 Series are powered by unified AMD RDNA™ 4 compute units with enhanced raytracing capabilities for an incredibly impressive experience across all major gaming resolutions. Activate AMD HYPR-RX6 to instantly enable all supported performance-boosting and latency-reducing technologies in thousands of your favorite games. Enjoy high-quality AI-powered upscaling with AMD FidelityFX™ Super Resolution 4, delivering an immersive gaming experience now and for years to come.
Instant Performance For Every Move
Boost the performance of AMD Radeon™ to an even higher level with the powerhouse of AMD Software. Activate AMD HYPR-RX6 with one click to unleash the true potential of the Radeon™ GPU, leveraging the combined forces of AMD Radeon™ Super Resolution, AMD Fluid Motion Frames, AMD Radeon™ Anti-Lag, and AMD Radeon™ Boost. UX with reliable drivers and day-zero game support will ensure that game optimizations are ready to deliver high frame rates, sharper visuals, and low latency for thousands of gaming experiences awaiting you.
Black Ops 7 Special Edition Design

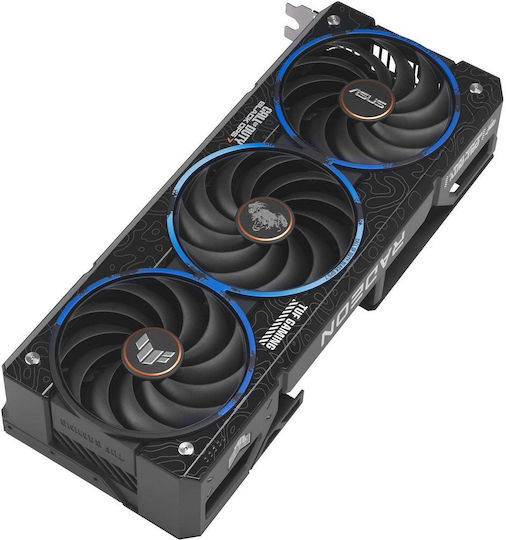

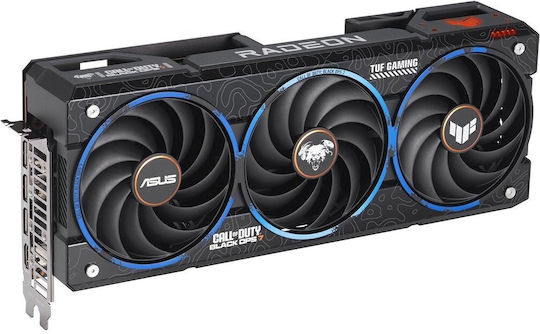

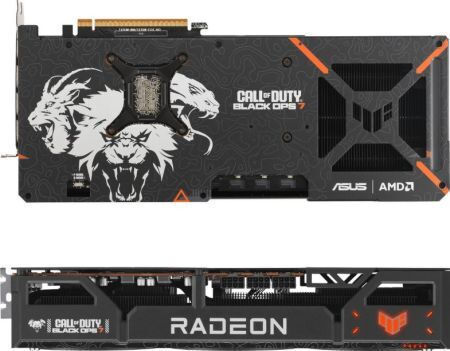

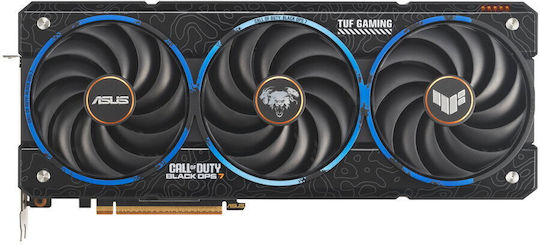

This limited edition graphics card is the result of a collaboration between ASUS, AMD, and Call of Duty®. The specially designed shroud and backplate feature iconic elements and imagery from Black Ops 7, with signature orange accents that highlight the game's unique style. Inside, it houses the powerful Radeon™ RX 9070 XT core, ready to deliver the ultimate gaming experience to every Call of Duty fan.
Military-Grade Durability
The TUF Gaming series is synonymous with reliability, and this particular card is no exception. It features military-grade certified chokes and MOSFETs that provide stable power delivery to the GPU. In addition, the TUF 5K black metallic capacitors offer 52% greater tolerance to temperature fluctuations and 2.5 times longer lifespan compared to standard market capacitors, ensuring the longevity of your system.
Innovative Thermal Protection and PCB
For maximum performance under load, a premium Phase-Change GPU Thermal Pad is used, which effectively fills the gaps between the GPU and the heatsink. The printed circuit board (PCB) is protected by a special protective coating that shields it against short circuits caused by moisture, dust, or debris. At the same time, ASUS GPU Guard reinforces the corners of the processor with special adhesive, drastically reducing the risk of cracks during transport or use.
Auto-Extreme Technology and Software
Each card is manufactured with Auto-Extreme technology, an automated production process that completes all soldering in a single pass. This reduces thermal stress on the components and improves the reliability of the final product. Through GPU Tweak III, users can precisely adjust frequencies, voltages, and fans, while Dual BIOS allows instant switching between Performance and Quiet profiles without the need for software.
