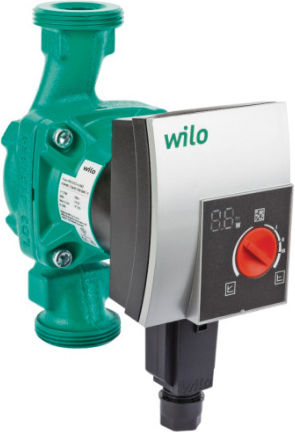

The Wilo Yonos PICO 25/1-6 electronic circulator is designed for hot-water heating systems, air-conditioning applications and industrial installations with circulators. It features a wet rotor, threaded connection, EC motor resistant to blocked-rotor current and integrated electronic power control.

The LED display lets you set the nominal value in 0.1 m increments and shows current power consumption. The electrical connection is tool-free using the Wilo quick connector, while the venting function makes it easier to bleed the pump. It is easy to configure when replacing a conventional circulator with selectable speeds, such as the Wilo-Star-RS, and its high starting torque helps ensure reliable start-up.

• Type: Electronic wet-rotor circulator
• Connection: Threaded
• Motor: EC motor resistant to blocked-rotor current
• Power control: Integrated electronic control
• Applications: Hot-water heating, air conditioning and industrial installations with circulators
• Display: LED
• Nominal value setting increment: 0.1 m
• Consumption display: Current
• Electrical connection: Tool-free, with Wilo quick connector
• Venting function: Integrated
• Starting torque: High
• Length: 160 mm
• Width: 180 mm
• Height: 81 mm
• Weight: 2.1 kg
