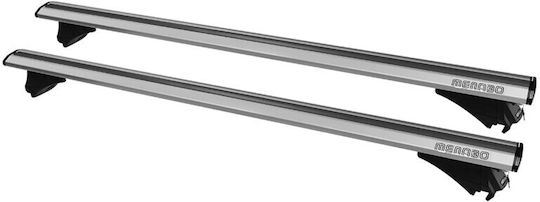

The Menabo roof bars for the Volvo XC 90 5D (2014 onwards) include aluminium bars with mounting feet and security locks. The feet attach to the factory-fitted parallel roof rails, whether they sit flush against the roof or leave a gap. The bars feature an anodised aluminium profile with a flat, oval shape and rounded corners, as well as non-slip rubber covers on the top and underside.
The upper T-track slot accepts compatible accessories with a 20 mm T-system connector, which is not included. Sliding protective end caps make it easier to insert the connector, while the scale on the underside helps adjust the position of the feet. Their vehicle contact points are rubber-coated to protect against scratches and wear.
- Type: Footed roof bar set
- Compatibility: Volvo XC 90 5D (2014 onwards), with flush or raised rails
- Material: Anodised aluminium
- Colour: Silver with black details
- Quantity: 2 bars
- Bar length: 135 cm
- Bar width: 80 mm
- Bar height: 30 mm
- Total height with feet: 108 mm
- Shape: Flat, oval with rounded corners
- T-track slot: On the top, for a 20 mm T-system connector
- T-track slot dimensions: 11 mm at the top and up to 21 mm at the bottom
- Aerodynamic profile: Yes
- Cover: Non-slip rubber on the top and underside
- Adjustable distance between feet: 935–1,250 mm
- Maximum rail slot opening: 45 mm
- Foot dimensions: 85 × 78 mm
- Foot material: Plastic with rubber coating
- Maximum load capacity: 75 kg
- Bar weight: 4.2 kg
- Theft protection: Integrated security locks
- Package contents: 2 bars with integrated feet, locks, assembly tool and instructions
- Certifications: TÜV SUD GS, CITY CRASH TEST, DIN 75302:2019, PPP 53210B:2019 and AfPS GS 2019:01 PAK
- Product Number
- MP.8860/MB-106
Dimensions
- Set
- with Roof Rack Legs
- Material
- Aluminum
Brand
- Volvo
- XC 90
