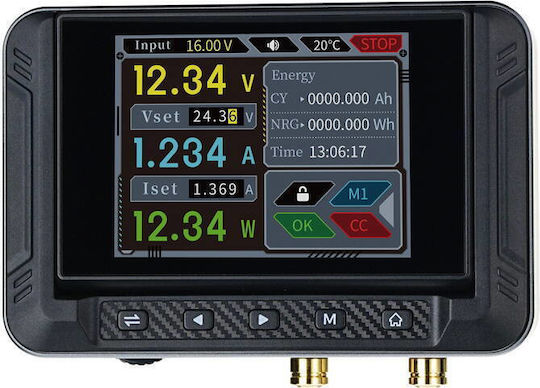

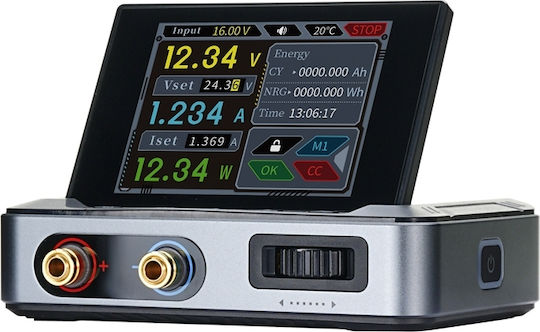

FNIRSI DPS150 programmable mini laboratory DC power supply. The FNIRSI DPS150 is a compact, programmable lab power supply that provides adjustable voltage and current. It features an easy-to-read IPS display and a range of protections for safe operation.

• Thermal conductivity: 3.0 W/m-K
• Aluminum frame that acts as a passive heatsink
• Protections: overvoltage (OVP), overload (OCP), short circuit (SCP), overheating (OTP)
• Built-in 2.8-inch color IPS display with 320×240 px resolution
• Storage for up to 6 preset configuration profiles
• Very low noise: ripple below 20 mV
• Outputs support 4 mm banana plug cables, U-type terminals, and classic copper wires

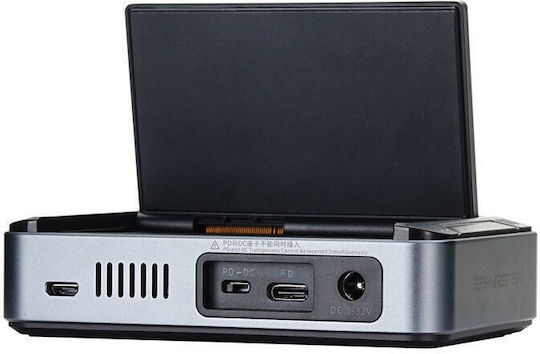

• Powered by DC 5-32V or via USB-C with PD/QC support

Technical specifications:

• Model: DPS-150
• Input voltage: DC 5.0 V - 32 V
• Input current: 100 mA - 5 A
• Resolution: Voltage: 10 mV, Current: 1 mA
• Reading accuracy: Input voltage: ≤0.2% ±5 mV, Output voltage: ≤0.1% ±10 mV
• Output current: ≤0.1% ±5 mA (for range 0-3.5 A)
• Operating temperature: Relative humidity: 0% - 75% RH
• Dimensions: 106 × 76 × 28 mm
• Weight: Approximately 178 g
• Full load efficiency: 96.30%
