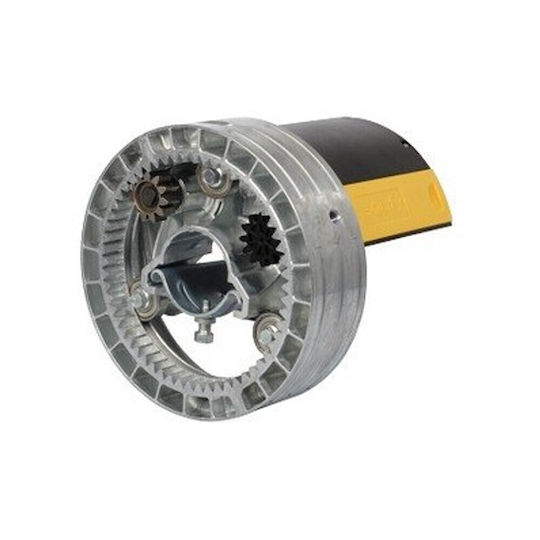

Garage Door Motor Simu Centris M 75 - Code 2007112
The Simu Centris M 75 central motor is ideal for automating garage and shop shutters.
Technical Specifications:
- Torque: 75 Nm
- Speed: 10 revolutions per minute (rpm)
- Lifting Capacity: Shutter height up to 190 kg
- Shaft Diameter: Designed for shaft Φ60
- Pulley Diameter: 200 mm
- Operating Voltage: 230V / 50Hz
- Power: 330W - 630W (depending on load version)
Main Advantages & Features:
- Built-in Electric Brake (AF) for immediate stopping and secure locking of the shutter
- Release System (AFAD/Manual) for manual operation in case of power failure
- Easy Adjustment with progressive limit switches
- IPX4 protection rating for resistance to moisture and dust
- Maximum Weight
- 190 kg
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
