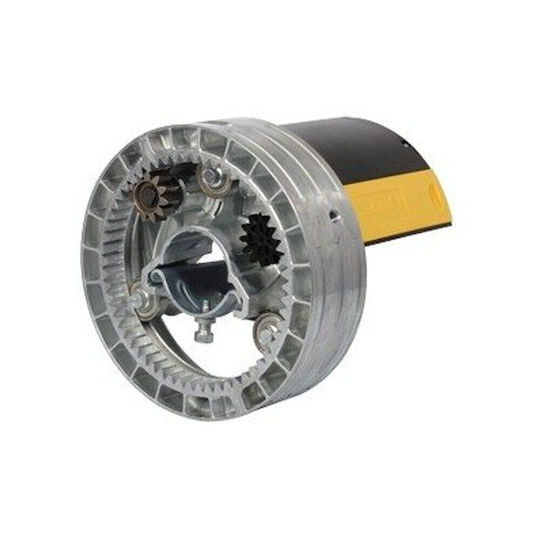

The 2008527 corresponds to the central motor Somfy Centreo S 60, which is designed for the automation of shop shutters and garage doors. It is a mechanism that is installed on the central shaft (spring shaft) and offers high reliability for medium weight installations.

Technical Specifications

• Torque: 60 Nm
• Speed: 10 revolutions per minute (rpm)
• Lifting Capacity: Can lift a shutter weighing up to 90 kg
• Shaft Compatibility: Designed for shaft with diameter Φ60
• Operating Voltage: 230V / 50Hz
• Power: 330W

Main Advantages & Functions

• Integrated Brake: Features an electromagnetic brake that ensures immediate stopping of the shutter and its secure holding
• Manual Release: Includes a declutching system for manual operation in case of power failure
• Easy Installation: Equipped with "memory rings" for quick adjustment of limit positions
• Durability: According to Somfy, the Centreo series has undergone endurance tests equivalent to about 10 years of use
