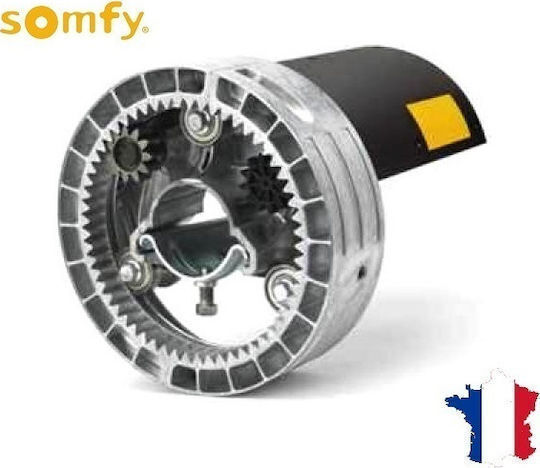

The Somfy Centris 100Nm (code 2007117) is a wired central motor designed for garage doors and commercial shutters with a Φ60mm shaft. It is a powerful mechanism with torque of 100Nm, suitable for shutters equipped with compensation springs.

• Torque: 100 Nm
• Shaft / Crown Diameter: 60mm shaft, 200mm crown
• Power Supply: 230V / 50Hz
• Consumption: 300 W during operation (0 W on standby)
• AFAD Type: Built-in release system for manual operation in case of power failure

Key Operating Features:

• Installation: The motor is installed in the center of the shutter shaft. The shaft remains stationary, while the external drum of the motor rotates to raise and lower the shutter.
• Limit Switches: Equipped with mechanical limit switches for adjusting the upper and lower stop positions.
• Protection: Protection rating IP X4, thermal protection that interrupts operation in case of overheating.
