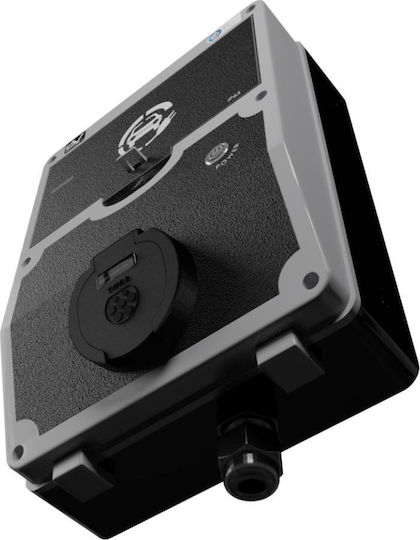

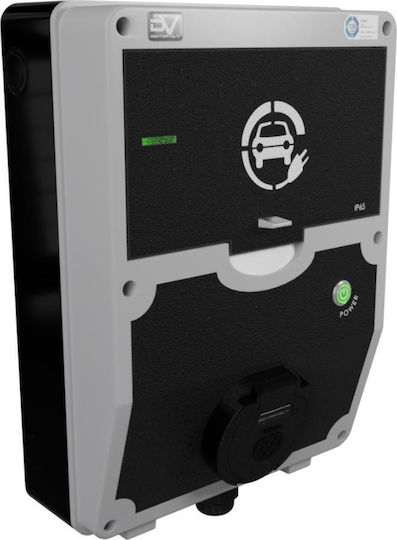

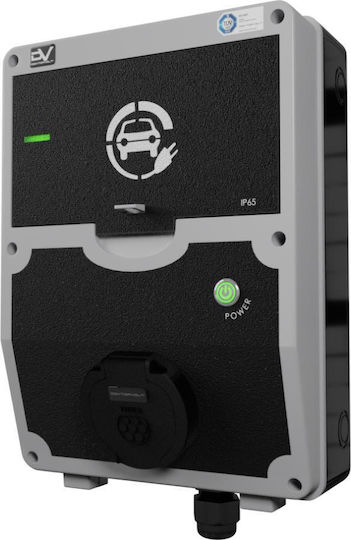

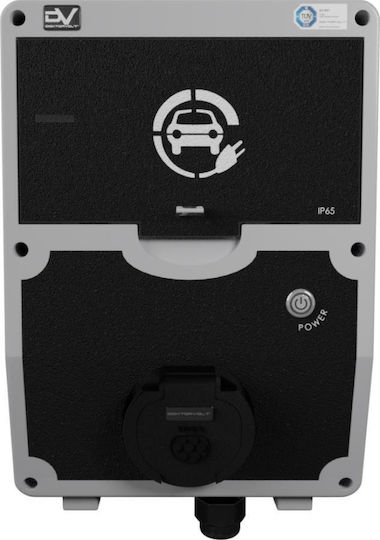

The Doktorvolt three-phase wall-mounted charger charges electric vehicles using AC power and features an integrated Type 2 cable. The charging power is 11 kW, and the current can be set to 10 A, 16 A, 20 A, 25 A or 32 A.
- Installation: Wall-mounted
- Phases: Three-phase
- Charging power: 11 kW
- Charging current: 10 A, 16 A, 20 A, 25 A or 32 A
- Cable: Integrated, 6 m long

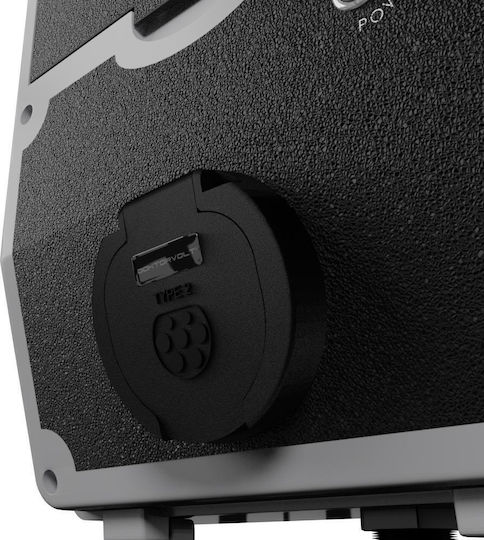

- Connector: Type 2 (IEC 62196-2)
- Charging mode: Mode 3
- Protection rating: IP54
- Material: Plastic, suitable for outdoor use
- Ambient temperature: From -20 °C to +50 °C
- UV resistance: Yes

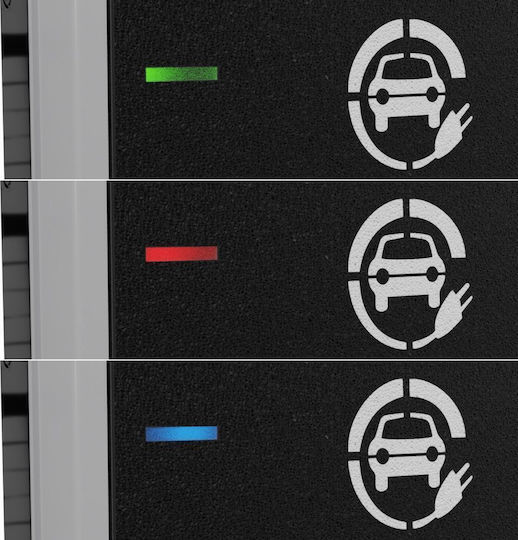

- Status indicator: Blue when ready to charge, green while charging, and red in the event of an error
- Controls: START/STOP button with LED indicator and illuminated main switch

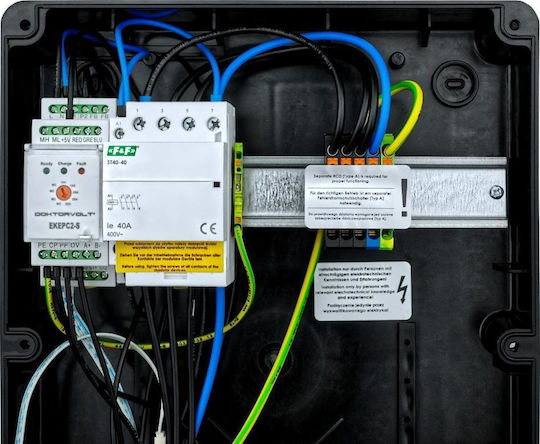

- Features: Vehicle communication controller, RCMU, and automatic charging shutoff in the event of an error

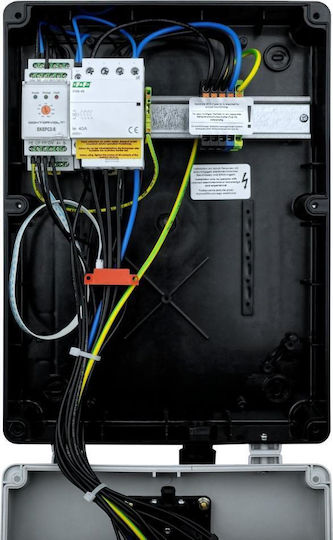

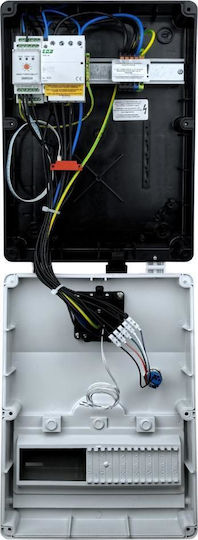

- Enclosure contents: 12-module inspection window and PG21 cable gland for the power cable
- Required external protection: At least a Type A residual-current device with a 30 mA tripping current and an overcurrent circuit breaker suitable for the controller setting
- Certifications and standards: TÜV SÜD, ISO 9001:2015, CE, IEC 61439, EN 62196-2
- Placement
- Wall Mounted
- Phase Capacity
- Three-Phase
- Charging Power
- 11 kW
- Current intensity
- 16 A
- Built-in Cable
- Yes
- Charging Port
- Type 2
- Cable Length
- 6 m
- Screen
- No
- Dynamic Load Balancing
- -
- WiFi
- -
- Bluetooth
- -
- RFID Access Control
- -
- Protection Certification
- IP54
- Durability
- -
