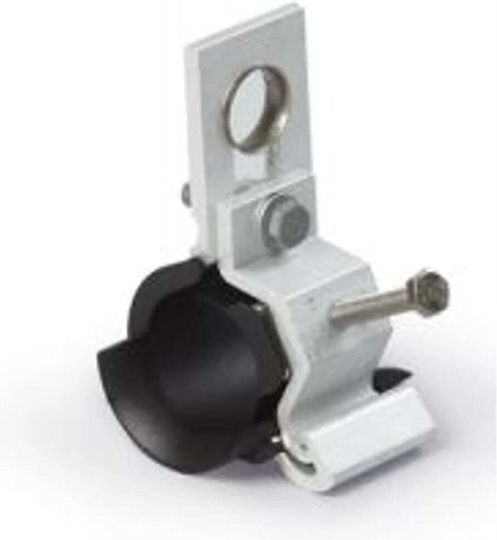

Through Bracket 2-4x 25-120 Mm2 So130

Insulated bundle conductor for hanging on line pole hooks. Its key features include:

Assembly for straight sections or small angles up to 150° with conductors 4x(25-120 mm²).
Angle up to 120° with...

Insulated bundle conductor for hanging on line pole hooks. Its key features include:

Assembly for straight sections or small angles up to 150° with conductors 4x(25-120 mm²).
Angle up to 120° with conductors 4x(25-50).
Integrated design that requires no additional components.
Body made from corrosion-resistant aluminum alloy.
Plastic parts made from weather...

32 90 €

Delivery Tue, 22 Sep - Mon, 28 Sep

14,00 € shipping cost

Sent from Greece

From Getters 4.5 (108)

Greece

15 pieces

See Electrical Panel Supplies on the page of Getters

Description

Insulated bundle conductor for hanging on line pole hooks. Its key features include:

Assembly for straight sections or small angles up to 150° with conductors 4x(25-120 mm²).
Angle up to 120° with conductors 4x(25-50).
Integrated design that requires no additional components.
Body made from corrosion-resistant aluminum alloy.
Plastic parts made from weather and UV resistant material.
Conductor cross-section: 2-4x(16-120) mm².
Cable diameter: 12-42 mm.
Weight: 0.294 kg.
Test voltage: 6 kV / 50 Hz / 1 min.
SMFL: 18 kN.
Clamping torque: 10 Nm.
