VEVOR Depth Gauge Set

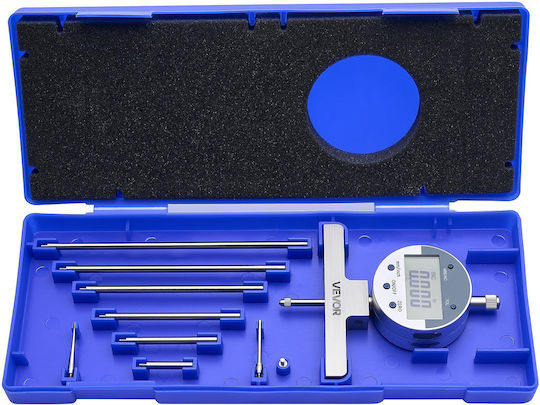

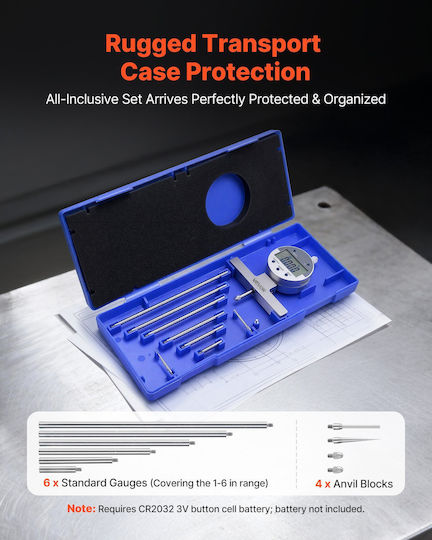

Complete set including a hard case with depth micrometer, six rods, four tips, and instructions. The case ensures that the tools are organized and portable, ready for use in the field or laboratory.
Versatile Measurements: The depth gauges include four tips for different workpieces and six rods that combine for a range of 0–22 inches, ideal for measuring metal sheets and grooves.

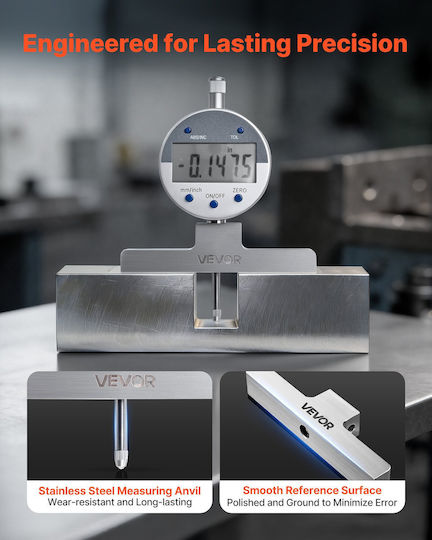

Precision Measurements: Features stainless steel tips and smooth reference surfaces for secure holding of parts. The sturdy metal frame provides wear resistance and long-term stability.

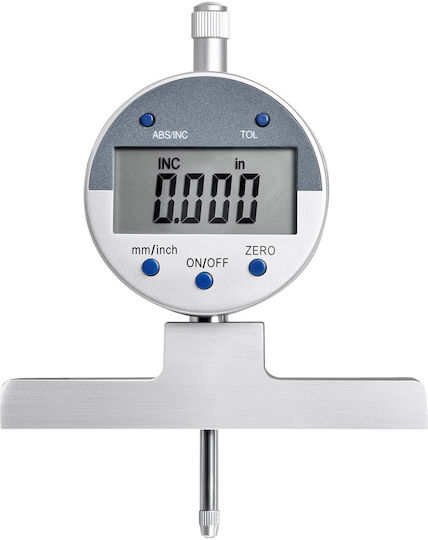

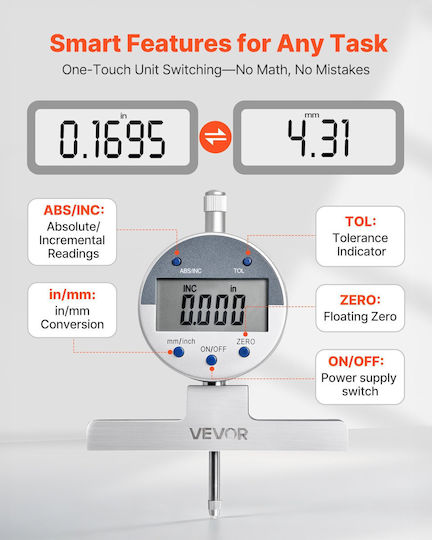

Smart and Flexible Operation: Includes an LCD display for clear readings and a unit switch button. The zeroing function allows calibration at any position for faster comparisons.

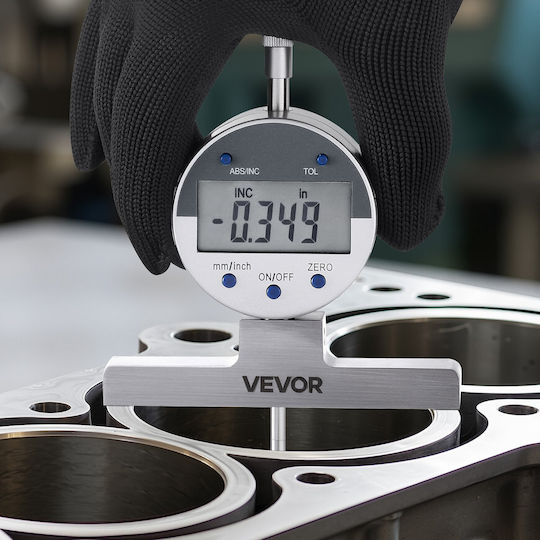

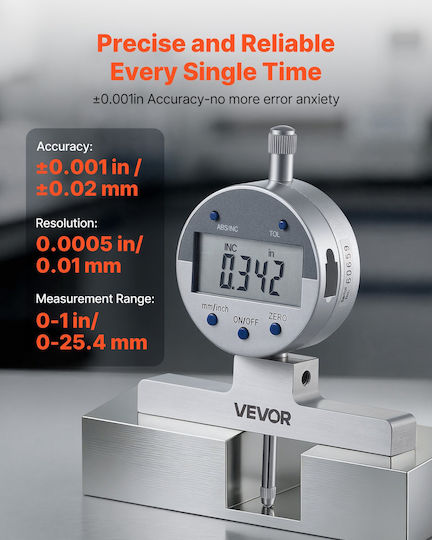

High Precision Set: Provides accurate linear readings with a range of 1–2 inches/25.4–50.8 mm, accuracy ±0.001 in/±0.02 mm, and resolution 0.0005 in/0.01 mm, ideal for measuring engine components.
-

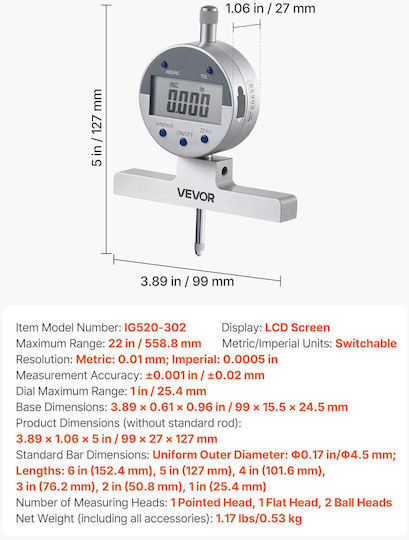

Measurement Range: 22 in / 558.8 mm
-
Net Weight: 1.17 lbs / 0.53 kg
-
Item Model: IG520-302
-
Base Dimensions: 3.89 x 0.61 x 0.96 in / 99 x 15.5 x 24.5 mm
-
Product Dimensions: 3.89 x 1.06 x 5 in / 99 x 27 x 127 mm
-
Measurement Units: Metric/Imperial, Switchable
-
Measurement Accuracy: ±0.001 in / ±0.02 mm
-
Rod Lengths: 6/5/4/3/2/1 in (152.4/127/101.6/76.2/50.8/25.4 mm)
-

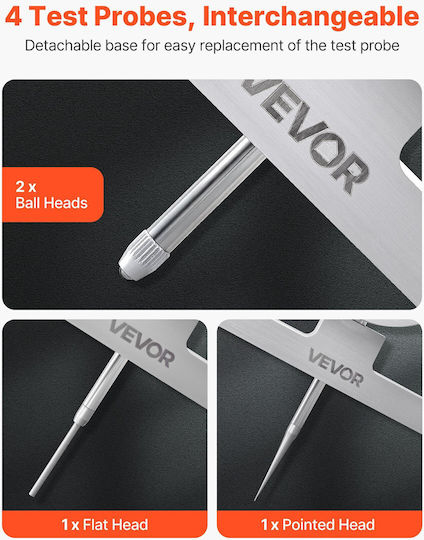

Number of Measuring Heads: 1 Sharp Head, 1 Flat Head, 2 Spherical Heads
-
Display: LCD Display
-
Resolution: Metric: 0.01 mm; Imperial: 0.0005 in
