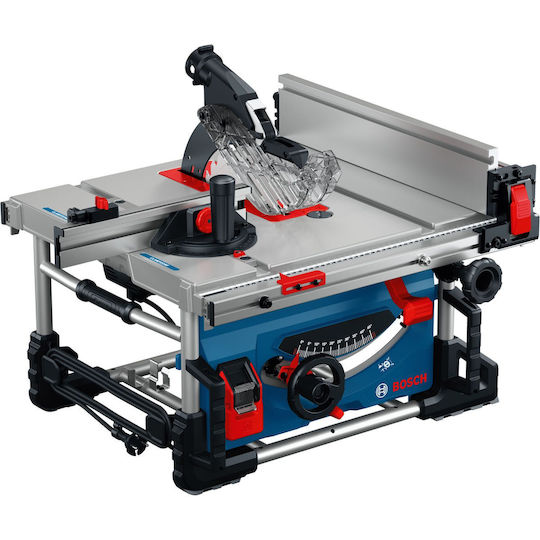

The GTS 70-216 stationary power saw maximizes cutting performance with a robust 1,850 W motor, the best cutting height in its category at 70 mm, and a rip capacity of 635 mm. You can easily carry this highly portable saw with one hand thanks to its compact design. It minimizes dust, keeping your workspace clean with two Click & Clean dust ports. Designed for precision, the GTS 70-216 ensures accurate rip cuts with its rack & pinion parallel guide system. It also features a manual selector for simple and precise micro-adjustments. The adjustable crosscut fence simplifies accurate angled cuts, while miter cuts from -2° to 47° without tools offer versatility for various tasks. Additionally, this saw comes with convenient clamping zones to secure the workpieces onto the table surface. And thanks to a slot in the parallel guide, you can position a thin board to protect against kickback.
At a glance
The GTS 70-216 stationary power saw maximizes cutting performance with a robust 1,850 W motor, the best cutting height in its category at 70 mm, and a rip capacity of 635 mm. You can easily carry this highly portable saw with one hand thanks to its compact design. It minimizes dust, keeping your workspace clean with two Click & Clean dust ports. Designed for precision, the GTS 70-216 ensures accurate rip cuts with its rack & pinion parallel guide system. It also features a manual selector for simple and precise micro-adjustments. The adjustable crosscut fence simplifies accurate angled cuts, while miter cuts from -2° to 47° without tools offer versatility for various tasks. Additionally, this saw comes with convenient clamping zones to secure the workpieces onto the table surface. And thanks to a slot in the parallel guide, you can position a thin board to protect against kickback.
Features & Functions
- Extremely portable thanks to the compact design with the best cutting height in its category of 70 mm
- Ensures precise cutting thanks to the rack & pinion parallel guide system and the accurate bevel guide
- Minimizes dust with two Click & Clean dust ports

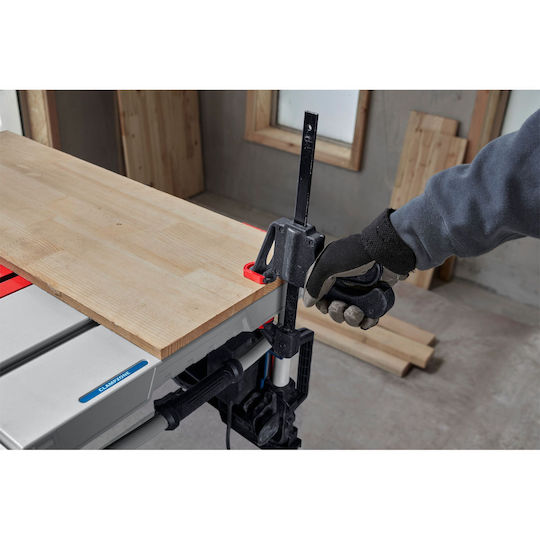

- Comfortable clamping zone areas for securing the workpieces on the table surface
Equipment and application
The stationary power miter saw GTS 70-216 is designed for cutting beams and floorboards, for connection work, for profile installation, and floor laying.
Specifications
- Manufacturer / PN: Bosch Professional / 0601B30600
- Rated Power: 1,850 W
- Table Size: 593 x 494 mm
- Saw Blade Diameter: 216 mm
- Blade Bore Diameter: 30 mm
- Maximum Cutting Height (90°): 70 mm
- Maximum Cutting Height (45°): 49 mm
- Rip Capacity (Right): 635 mm
- Rip Capacity (Left): 305 mm
- Weight: 22.3 kg
Includes

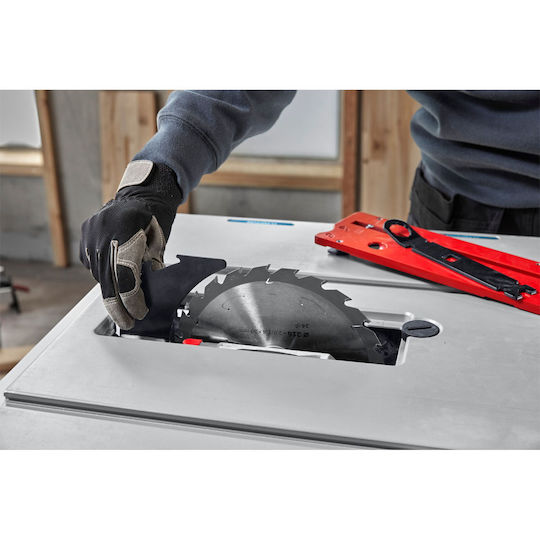

- 1 x Optiline Wood saw blade (216 x 30 x 1.6 mm, 22 teeth).
- 1 x Parallel guide (Rack & Pinion).
- 1 x Angle guide.
- 1 x Push stick.
- 1 x Protective cover with suction adapter.
- 1 x Dust suction adapter.
- 1 x Hex key & Polygonal key.
Specifications
- Power
- 1850 W
- Disc Diameter
- 216 mm
- Cutting Speed
- 5500 rpm
- Maximum Cutting Height 45°
- 49 mm
- Maximum Cutting Height 90°
- 70 mm
- Power Source
- Electric
Additional Specifications
- Cutting Guide (laser)
- No
- Dust Suction System
- Yes
- Soft Start
- No
