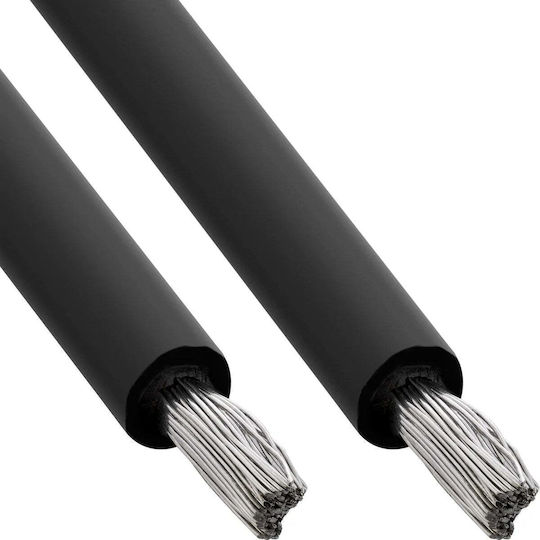

InLine® H1Z2Z2-K Solar Installation Cable with a cross-section of 4 mm² and a length of 25 m. Suitable for outdoor photovoltaic installations, featuring a flexible design and resistance to UV, ozone, and weather conditions.
-
Type: medium voltage cable
-
Maximum operating voltage: 1500 V
-
Insulation thickness: 0.7 mm
-
Diameter: 5.5 mm
-
Weight: 1.15 kg
-
Conductor: tinned copper
-
DC line resistance: 5.09 Ohm/km
-
Voltage test: AC 6.5 kV, DC 15 kV
-
Compliance: EN 60 811 / 50618, EN 60332-1-2, LSOH
-
Insulation: halogen-free, low smoke, cross-linked polyolefin material (XLPO)
-
Ambient temperature: -40°C to +90°C
-
Minimum bending radius: 22 mm
-
Packaging dimensions: 250 × 255 × 82 mm
