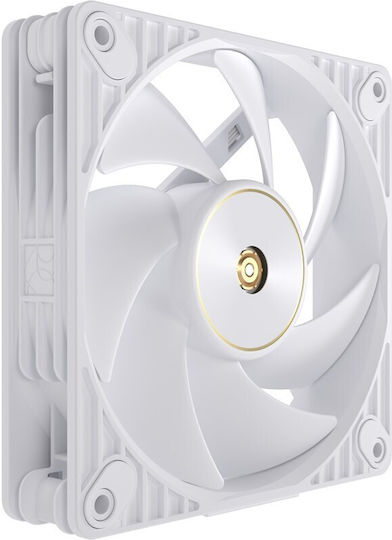

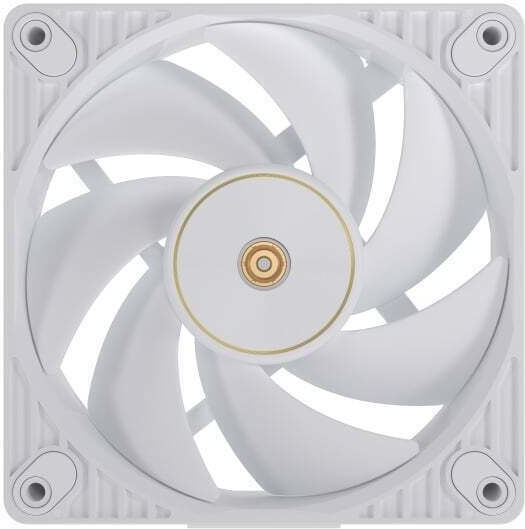

ProArt PF120 Case Fan 3000rpm 104.8cfm Without LED Lighting White
Case Fans

ProArt PF120 Case Fan 3000rpm 104.8cfm Without LED Lighting White

The Asus ProArt PF120 case fan is a 120 mm PWM model with a white finish. Its 28 mm-thick frame and 0.5 mm clearance between the blades and frame help promote airflow and reduce turbulence. The...

The Asus ProArt PF120 case fan is a 120 mm PWM model with a white finish. Its 28 mm-thick frame and 0.5 mm clearance between the blades and frame help promote airflow and reduce turbulence. The reinforced liquid crystal polymer (LCP) blades support stable operation at high speeds.

The 3-phase, 6-pole motor uses a fluid dynamic bearing (FDB), while the...

See full description See full description

Learn more about invoicing
Product report

Description

Description

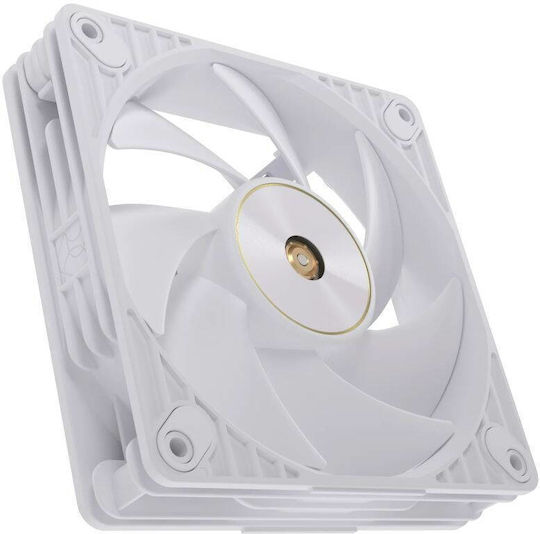

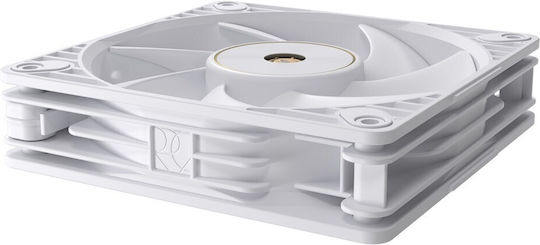

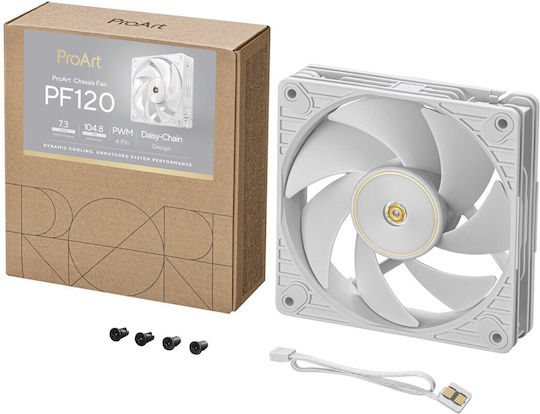

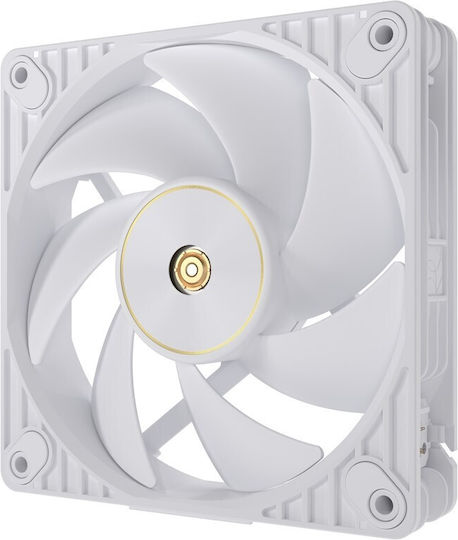

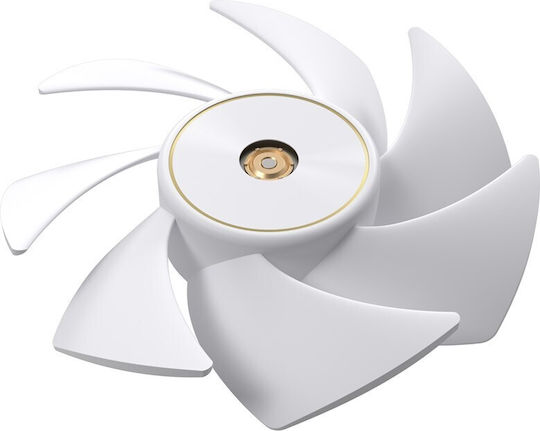

The Asus ProArt PF120 case fan is a 120 mm PWM model with a white finish. Its 28 mm-thick frame and 0.5 mm clearance between the blades and frame help promote airflow and reduce turbulence. The reinforced liquid crystal polymer (LCP) blades support stable operation at high speeds.

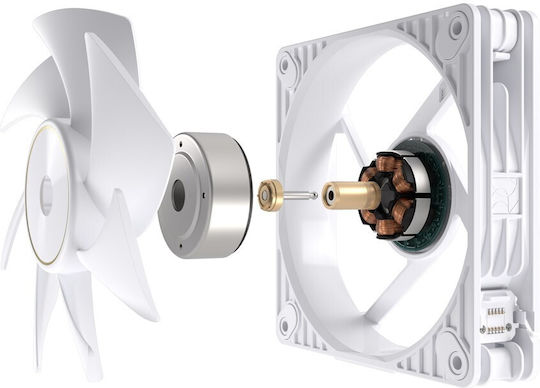

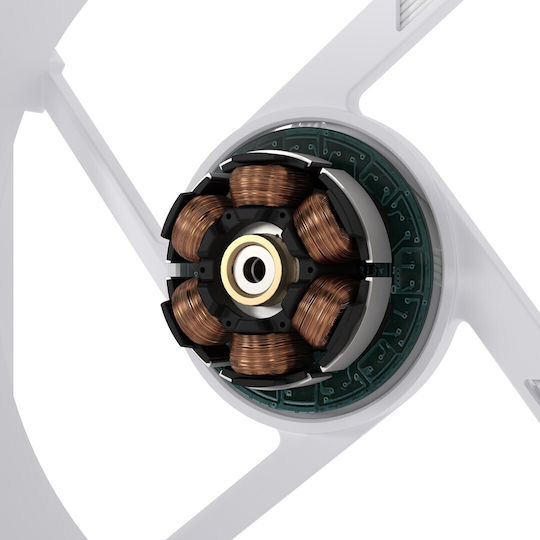

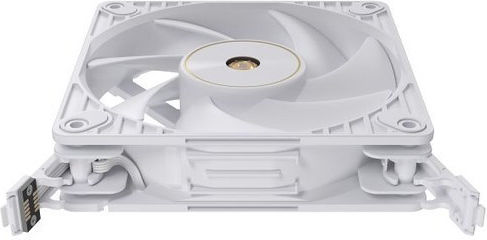

The 3-phase, 6-pole motor uses a fluid dynamic bearing (FDB), while the bearing housing is machined from brass and includes a steel core. The 4-pin PWM connection supports daisy-chaining fans and PWM signal sharing. The fan can be used in PC cases, radiators, and AIO liquid cooling systems.

  • Size: 120 mm
  • Frame thickness: 28 mm
  • Color: White
  • LED lighting: No LED lighting
  • Fan speed: 3000 rpm
  • Airflow: 104.8 cfm
  • Static pressure: 1.5 mmH₂O
  • Noise level: 39 dB
  • Control type: PWM
  • Connector: 4-pin PWM with daisy-chain support
  • Bearing type: Fluid dynamic bearing (FDB)
  • Blade material: Reinforced liquid crystal polymer (LCP)
  • Motor: 3-phase, 6-pole
  • Pieces per package: 1

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Main Specifications

Dimension
120 mm

Dimension

The diameter of the fan in millimeters. The larger the fan, the more effective the cooling and the quieter its operation compared to a smaller one. The most common size is 120mm, with some computer cases supporting larger sizes such as 140mm.
Colour
White
Packaging
1 pcs

Technical Specifications

Fan Speed (Max)
3000 rpm

Fan Speed (Max)

The maximum rotations at which the fan turns. To reduce the rotations, it should be connected to a speed controller, either through a port on the motherboard that supports this function. Usually, the higher the rotations, the greater the flow but also the noise. As long as the needs for noise and air flow are covered, the rotations do not need to be taken into account.
Noise Level (Max)
39 dB

Noise Level (Max)

The noise produced by the fan when operating at maximum speed.

A medium noise fan produces 20-28dB, while those below 20dB are considered quiet.
Air Flow (Max)
104.8 cfm

Air Flow (Max)

The amount of air that the fan can push in one minute (cubic feet per minute) when operating at maximum speed.

The higher the number, the more effective the cooling that the fan can provide.

Higher quality fans can produce the same airflow with less noise and speed.
LED Color
Without LEDs
Reverse Blade
No

Reverse Blade

Reverse blade fans reverse the airflow, allowing for intake without the interference of the frame, which reduces aerodynamic turbulence and noise. Additionally, apart from enhancing aesthetics and lighting, they make it easier to clean the blades and offer better cable management, as the wiring remains hidden behind the frame.
Air Pressure
1.5 mmH₂O: millimeters of water

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (2)

Reviews

5.0
2
5.0
Review this product
  1. 2
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product

Description & Specifications

The Asus ProArt PF120 case fan is a 120 mm PWM model with a white finish. Its 28 mm-thick frame and 0.5 mm clearance between the blades and frame help promote airflow and reduce turbulence. The reinforced liquid crystal polymer (LCP) blades support stable operation at high speeds.

The 3-phase, 6-pole motor uses a fluid dynamic bearing (FDB), while the bearing housing is machined from brass and includes a steel core. The 4-pin PWM connection supports daisy-chaining fans and PWM signal sharing. The fan can be used in PC cases, radiators, and AIO liquid cooling systems.

  • Size: 120 mm
  • Frame thickness: 28 mm
  • Color: White
  • LED lighting: No LED lighting
  • Fan speed: 3000 rpm
  • Airflow: 104.8 cfm
  • Static pressure: 1.5 mmH₂O
  • Noise level: 39 dB
  • Control type: PWM
  • Connector: 4-pin PWM with daisy-chain support
  • Bearing type: Fluid dynamic bearing (FDB)
  • Blade material: Reinforced liquid crystal polymer (LCP)
  • Motor: 3-phase, 6-pole
  • Pieces per package: 1

Manufacturer

Manufacturer Details

Warnings & Safety Information

Main Specifications

Dimension
120 mm

Dimension

The diameter of the fan in millimeters. The larger the fan, the more effective the cooling and the quieter its operation compared to a smaller one. The most common size is 120mm, with some computer cases supporting larger sizes such as 140mm.
Colour
White
Packaging
1 pcs

Technical Specifications

Fan Speed (Max)
3000 rpm

Fan Speed (Max)

The maximum rotations at which the fan turns. To reduce the rotations, it should be connected to a speed controller, either through a port on the motherboard that supports this function. Usually, the higher the rotations, the greater the flow but also the noise. As long as the needs for noise and air flow are covered, the rotations do not need to be taken into account.
Noise Level (Max)
39 dB

Noise Level (Max)

The noise produced by the fan when operating at maximum speed.

A medium noise fan produces 20-28dB, while those below 20dB are considered quiet.
Air Flow (Max)
104.8 cfm

Air Flow (Max)

The amount of air that the fan can push in one minute (cubic feet per minute) when operating at maximum speed.

The higher the number, the more effective the cooling that the fan can provide.

Higher quality fans can produce the same airflow with less noise and speed.
LED Color
Without LEDs
Reverse Blade
No

Reverse Blade

Reverse blade fans reverse the airflow, allowing for intake without the interference of the frame, which reduces aerodynamic turbulence and noise. Additionally, apart from enhancing aesthetics and lighting, they make it easier to clean the blades and offer better cable management, as the wiring remains hidden behind the frame.
Air Pressure
1.5 mmH₂O: millimeters of water

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
