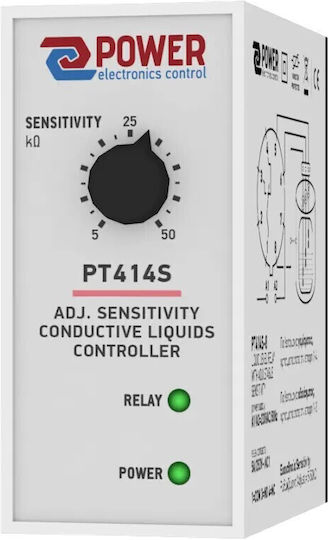

PELC-PT414S-8PIN Liquid Level Controller with adjustable sensitivity 5-50KΩ. Used to monitor the level of conductive liquids in tanks and wells. It connects to three hanging-type electrodes. Its operation is based on measuring the resistance of the liquid between the electrodes. The relay activates when the liquid level reaches the top electrode and deactivates when the level drops below the middle electrode. The bottom electrode serves as a reference and can be replaced with ground when the tank is metallic. Using a safe low alternating voltage between the electrodes prevents electrolysis phenomena.

• Power supply: 230V AC / 50Hz
• Maximum liquid resistance: 50 kΩ
• Maximum electrode voltage: 24VAC
• Relay output: One changeover contact 10A / 250VAC cat. AC1
• LED indicators: POWER ON and RELAY ON
• Protection: Varistor (against surges and lightning)
• Electrode connection cables: Cross-section 1 – 2.5mm², maximum cable length 500m
• Connection base: Bayonet type, 8p
• Operating temperature: -20º to +50º C
• Enclosure: Plastic box 42 x 89 x 92 mm / IP 41
• Packaging dimensions: 10.50 x 5 x 10 cm
• Weight: 0.200 kg

Package Contents: 1x PELC-PT414S-8PIN Liquid Level Controller with adjustable sensitivity 5-50KΩ
