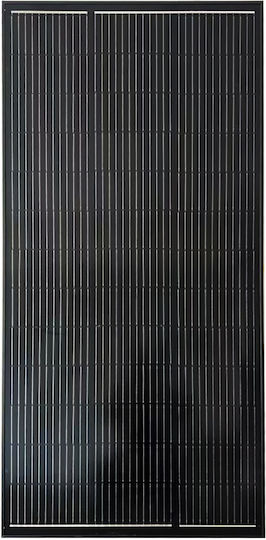

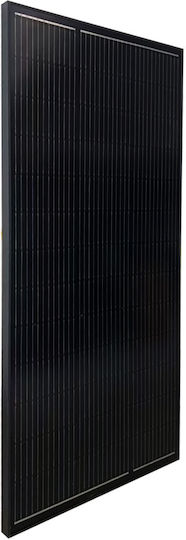

The VOLT mono 220W photovoltaic panel has a maximum power of 220 W and an open-circuit voltage of 27.38 V. The panel features high cell efficiency above 23.2% and is covered with an EVA film that provides waterproof protection, suitable for installation in systems.

Test data:

• Electrical insulation test
• Outdoor conditions durability test
• Hot spot test
• UV radiation resistance test
• Temperature variation and hail impact resistance test
• Moisture resistance test
• Durability test
• Mechanical load resistance test

Technical specifications:

• Maximum Power Pmax (W): 220W
• Tolerance (%): 3%
• Voltage at maximum power Vmp (V): 22.82
• Current at maximum power Imp (A): 9.65
• Open-circuit voltage Voc (V): 27.38
• Short-circuit current Isc (A): 10.42
• Module efficiency (%): 22.2
• Solar cell efficiency (%): 23.2
• Typical fuse current (A): 15
• Protection rating: IP65
• Maximum system voltage (V): DC 1000
• Operating temperature range: -40°C to 85°C
• Dimensions: 1480 x 670 x 35 mm
• Frame dimensions: 25 mm
• Weight: 12.5 kg
• Frame: Aluminum frame, glass surface

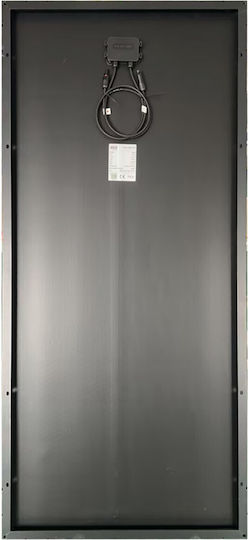

• Cables and J-Box: Cable with MC4 connectors, 90 cm
