The BMS board is a battery management system that protects rechargeable lithium batteries, essential for all devices that use such batteries. It protects the battery from:

• overcharging
• overdischarging
• overvoltage
• short circuit
• high charging and discharging temperature

The board is made from aerospace-grade aluminum.

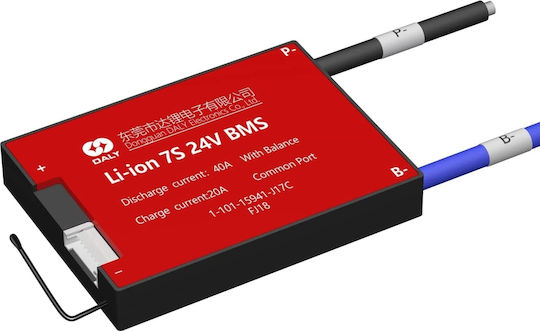

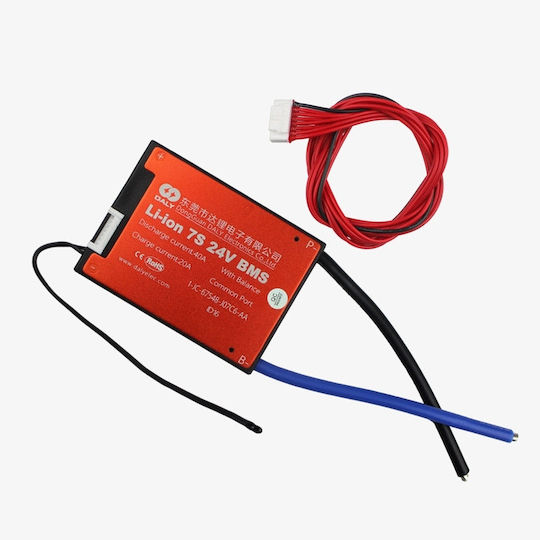

Application: Suitable for 7S 24V 40A lithium-ion battery.

Specifications:

• Supported battery chemistry: Li-ion, Li-Po
• Number of cells in series: 7

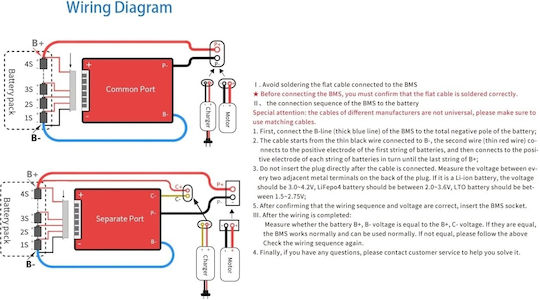

• Common port/separate port: Common port
• Protection circuit: Yes
• Safety features:
  • short circuit
  • overvoltage
  • overload
  • undervoltage
• Undervoltage detection (UVP) [V]: 2.70 (±0.05)
• Overdischarge release voltage [V]: 3.0 (±0.05)
• Overvoltage detection (OVP) [V]: 4.25 (±0.05)
• Overcharge release voltage [V]: 4.15 (±0.05)
• Discharge current protection [A]: 50 (±10)
• Balance function: Passive
• Balance activation voltage [V]: 4.13
