Description
Specifications

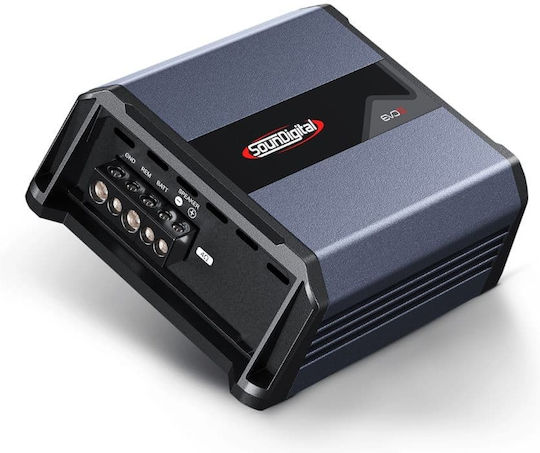

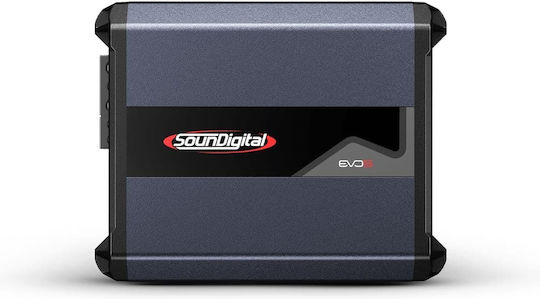

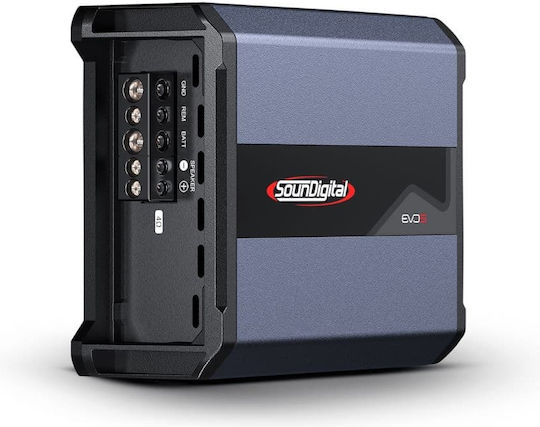

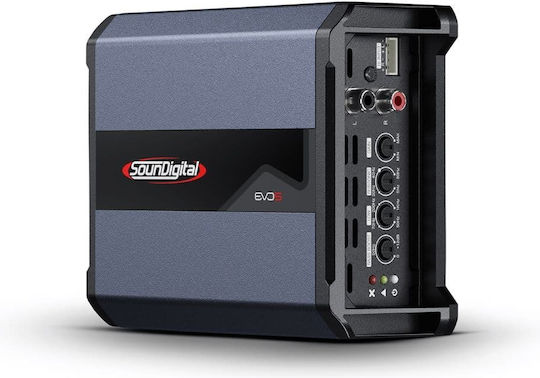

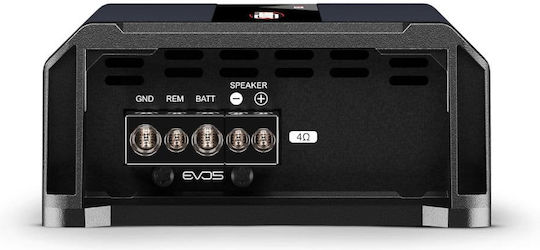

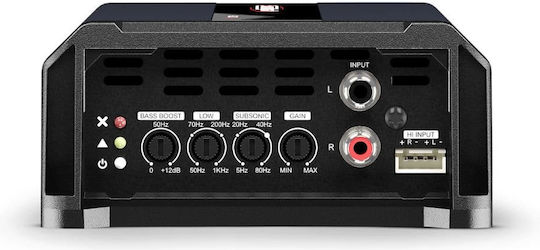

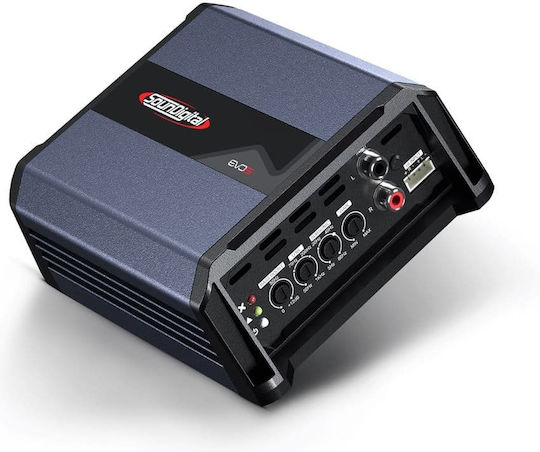

Car Amplifier 800.1 EVO 5
- Power Capacity:
- RMS Capacity @ 2Ω: 800W
- RMS Capacity @ 4Ω: 535W
- RMS Capacity @ 8Ω: 348W
- Frequency Response (-3dB): 10Hz ~ 20kHz
- Subsonic Filtering (HP 12dB/Oct): 10Hz ~ 80Hz
- Low Pass Filtering (LP 12dB/Oct): 50Hz ~ 20kHz
- Power Supply Voltage: 8V ~ 16V
- Signal to Noise Ratio (SNR):
- 2Ω: 96dB
- 4Ω: 97dB
- Input Sensitivity (RCA): 0.2V ~ 2V
- High Input Sensitivity: 1.5V ~ 15V
- Current Consumption with Music Signal:
- 2Ω: 40.8A
- 4Ω: 38.7A
- Current Consumption with Resistive Load (1kHz @ 12.6V):
- 2Ω: 81.6A
- 4Ω: 77.4A
- Overall Efficiency:
- 2Ω: 79.4%
- 4Ω: 78.9%
- Damping Factor (@100Hz Nominal Load): 200
- Power Cable: 10mm² (7AWG)
- Audio Output Cable: 2 x 2mm² (12 AWG)
- Recommended Fuse (Music): 40A
- Recommended Battery (Minimum for Music Use): 60Ah
- Dimensions:
- Width: 11.3 cm
- Length: 14.8 cm
- Height: 5.1 cm
- Weight: 0.7 kg
- Product Number
- SD800.1 EVO 5
- Number of Channels
- 1 Channel
- Output Power (4 Ohm)
- -
- Amplifier class
- -
