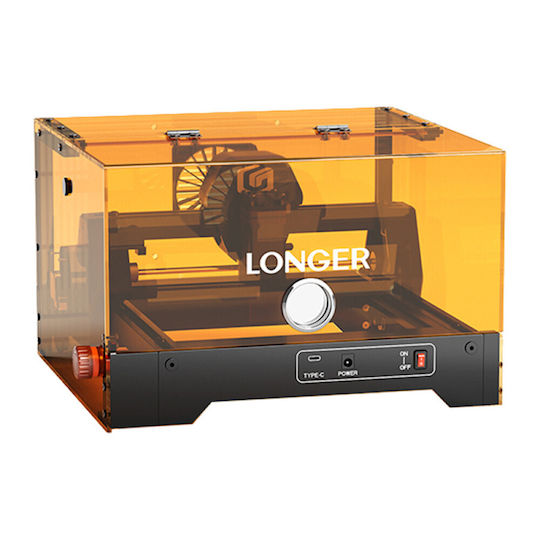

The Longer Ray5 miniS laser engraver uses a 2.5 W laser diode with a wavelength of 450 nm for engraving leather, wood, MDF, acrylic, and Plexiglass. Its 130 × 140 mm work area and engraving speed of up to 12,000 mm/min are suited to small projects and objects. The beam measures 0.04 × 0.04 mm, and engraving accuracy is 0.04 mm.

The engraver has an aluminum-alloy body and comes pre-assembled. Focusing is done with a 2 mm-thick block. For operation, it supports USB or Wi-Fi connectivity, a mobile app, and LaserGRBL or LightBurn software. Once the file has been transferred, it can operate offline. The enclosure, door sensor, limit switches, emergency stop button, and smoke-extraction fan support its operation.

• Laser power: 2.5 W
• Laser source: Single laser diode with FAC
• Wavelength: 450 nm
• Work area: 130 × 140 mm
• Engraving speed: Up to 12,000 mm/min
• Engraving accuracy: 0.04 mm
• Beam dimensions: 0.04 × 0.04 mm
• Maximum cutting depth: 12 mm
• Materials: Leather, wood, MDF, acrylic, Plexiglass, fabric, metal, and ceramics
• Connectivity: USB, Wi-Fi, and app
• Supported software: LaserGRBL and LightBurn
• Supported operating systems: Windows, macOS, Linux, Android, and iOS
• Supported file formats: JPG, BMP, PNG, and DXF
• Body material: Aluminum alloy
• Dimensions: 307 × 320 × 197 mm
• Weight: 2.89 kg
• Power supply: 100–240 V, 50/60 Hz, 1.5 A / 12 V–2 A (24 W) or 12 V–3 A (36 W)
• Certifications: CE, FCC, FDA, and RoHS

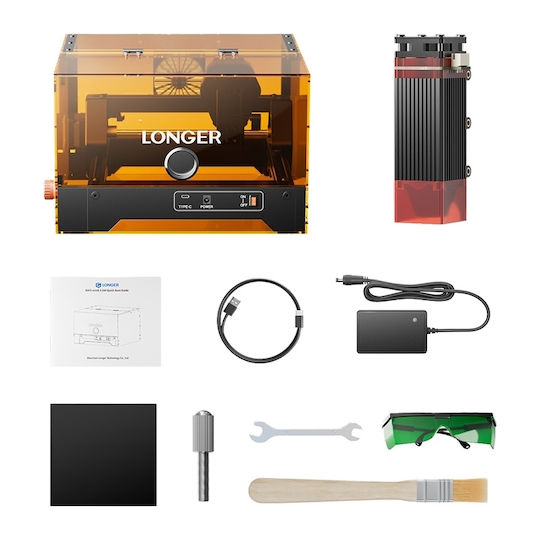

• Package contents: Machine frame, laser module, power supply, data cable, safety glasses, focusing block, wrench, wooden brush, and tools
