The Longer Ray5 Minis laser engraver is suitable for engraving and light cutting on leather, wood, MDF, and acrylic (Plexiglass). Its single-diode laser has an output power of 5.5 W and a wavelength of 450 nm, while the work area measures 130 × 140 mm. Engraving accuracy is 0.04 mm, and the speed reaches up to 12,000 mm/min.

The device features USB and Wi-Fi connectivity, supports mobile apps and LaserGRBL or LightBurn software, and can operate offline after the file has been uploaded. The enclosure features a cover, a door sensor, axis limit switches, an emergency stop button, and an exhaust fan. It comes pre-assembled and has an aluminum alloy body.

• Laser power: 5.5 W
• Laser type: Single-diode laser with FAC
• Wavelength: 450 nm
• Engraving and cutting materials: Leather, wood, MDF, and acrylic (Plexiglass)
• Work area: 130 × 140 mm
• Cutting depth: 12 mm
• Engraving speed: Up to 12,000 mm/min
• Engraving accuracy: 0.04 mm
• Laser spot size: 0.04 × 0.04 mm
• File formats: JPG, BMP, PNG, DXF
• Connectivity: USB, Wi-Fi, and app
• Software: LaserGRBL and LightBurn
• Supported operating systems: Windows, macOS, Linux, Android, and iOS
• Offline operation: After the file has been uploaded
• Safety features: Cover, door sensor, axis limit switches, and emergency stop button
• Smoke extraction: Exhaust fan
• Body material: Aluminum alloy
• Device dimensions: 307 × 320 × 197 mm
• Device weight: 2.89 kg
• Service life: Over 10,000 hours
• Power supply: 100–240 V, 50/60 Hz, 1.5 A / 12 V–2 A (24 W) or 12 V–3 A (36 W)
• Certifications: CE, FCC, FDA, RoHS

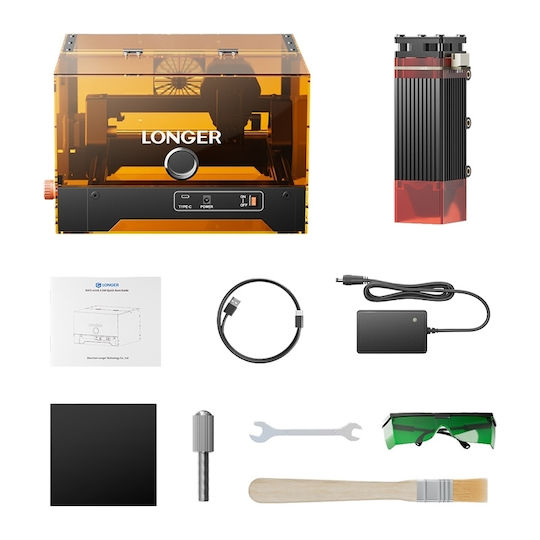

• Package contents: Machine frame, laser module, power supply, data cable, safety glasses, focusing block, wrench, and wooden brush
