The Longer Ray5 Minis laser engraver uses a 3.5 W laser diode and is suitable for engraving leather, wood, MDF, acrylic, and Plexiglass. Its work area measures 130 × 140 mm, and engraving speeds reach up to 12,000 mm/min. It connects via USB or Wi-Fi and supports offline operation after the file has been transferred.

The laser spot measures 0.04 × 0.04 mm, and engraving accuracy is 0.04 mm. The machine features an enclosure with a cover, a door sensor, axis limit switches, and an emergency stop button. An exhaust fan removes fumes from the work area. The aluminum alloy frame comes pre-assembled.

• Laser power: 3.5 W
• Laser type: Diode with FAC
• Wavelength: 450 nm
• Work area: 130 × 140 mm
• Engraving speed: Up to 12,000 mm/min
• Engraving accuracy: 0.04 mm
• Laser spot size: 0.04 × 0.04 mm
• Cutting depth: 12 mm
• Engraving materials: Leather, wood, MDF, acrylic, and Plexiglass
• Connectivity: USB and Wi-Fi
• Supported file formats: JPG, BMP, PNG, DXF
• Supported software: LaserGRBL and LightBurn
• Supported operating systems: Windows, macOS, Linux, Android, and iOS
• Safety features: Cover, door sensor, axis limit switches, and emergency stop button
• Fume extraction: Exhaust fan
• Construction material: Aluminum alloy
• Dimensions: 307 × 320 × 197 mm
• Weight: 2.89 kg
• Power supply: 100–240 V, 50/60 Hz, 1.5 A / 12 V–2 A (24 W) or 12 V–3 A (36 W)
• Certifications: CE, FCC, FDA, RoHS

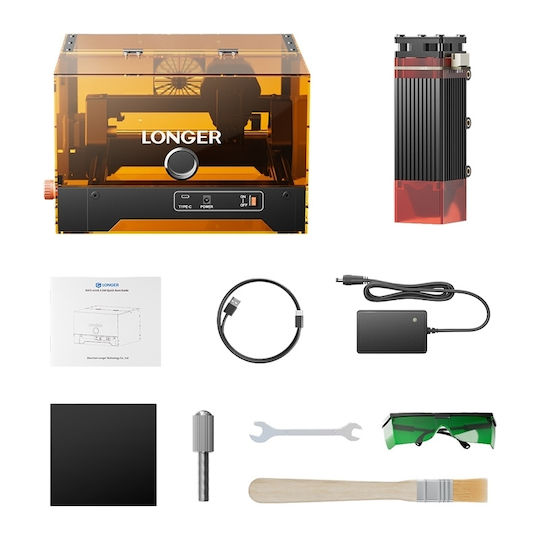

• Package contents: Machine frame, laser module, power supply, data cable, safety glasses, focusing block, wrench, wooden brush
