Boat Engine Parts

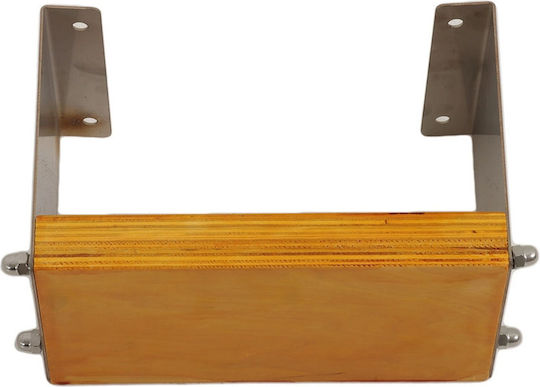

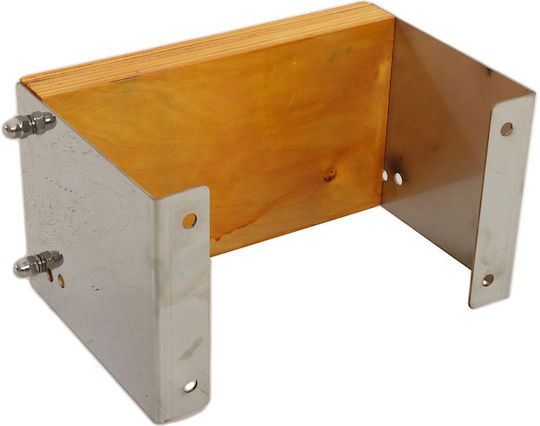

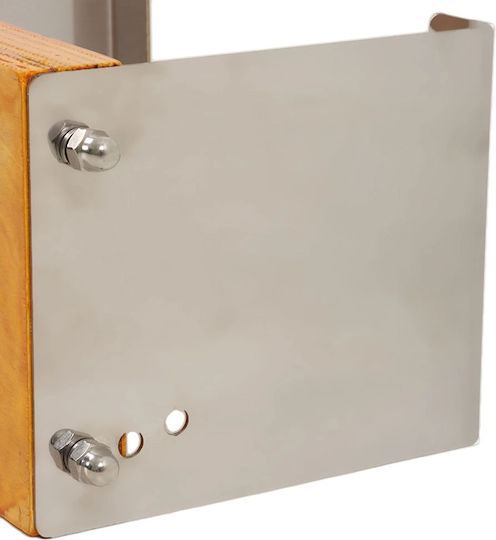

Auxiliary Outboard Engine Mount Engines Up To 12 Hp Stainless Steel & Wood Code: 52010012

Dimensions:

Mounting holes: For 8mm screws. Vertical distance 110mm (center to center) and horizontal 125mm (center to center).
Mounting system: Four fastening holes.
Projection (Distance from...

Dimensions:

Mounting holes: For 8mm screws. Vertical distance 110mm (center to center) and horizontal 125mm (center to center).
Mounting system: Four fastening holes.
Projection (Distance from transom): 175mm.
Width: 265mm.
Height: 145mm.

Features:

Support surface: Large wooden pad for mounting the outboard motor.
Maximum power: Suitable for engines up to...

See full description See full description

49 00 €

Delivery by Thu, 25 Jun

14,00 € shipping cost

Sent from Greece

From Nautocosmos

Greece

2 pieces

See Boat Parts on the page of Nautocosmos

Description

Dimensions:

Mounting holes: For 8mm screws. Vertical distance 110mm (center to center) and horizontal 125mm (center to center).
Mounting system: Four fastening holes.
Projection (Distance from transom): 175mm.
Width: 265mm.
Height: 145mm.

Features:

Support surface: Large wooden pad for mounting the outboard motor.
Maximum power: Suitable for engines up to 12 HP.
Use: Ideal for storing outboard motors on larger boats or for use as an auxiliary support.
Adjustable tilt: Adjustable from 0 to 17 degrees.

Manufacturer

OEM

See full description

Specifications

Product Number: 52010012

Type: Engine Mounts

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
