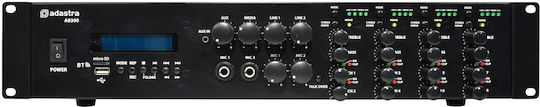

The Adastra A8300 PA mixer-amplifier features eight 300 W speaker outputs and can operate in stereo or dual-mono mode. Each output zone has independent volume, bass and treble controls, while the two microphone inputs have separate level controls and a line-input override function for voice announcements.

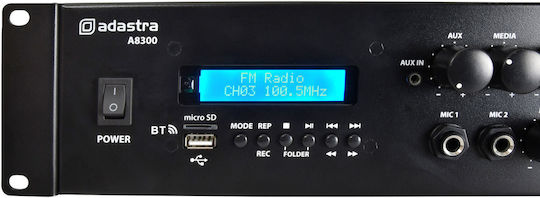

The built-in media player supports MP3 files from USB or microSD, and the unit features an FM tuner and a wireless Bluetooth receiver. For emergency announcements, the 24 V contacts activate muting. The Class D amplifier circuitry is housed in a 2U rack enclosure.
- Type: Integrated PA mixer-amplifier
- Speaker outputs: 8
- Output power: 300 W per output
- Output configuration: Stereo or dual mono
- Microphone inputs: 2 × 6.3 mm jack, mono, on the front or rear panel
- Line inputs: 2 stereo, RCA
- Digital audio input: Optical TOSLink (S/PDIF)
- Auxiliary input: 3.5 mm stereo jack
- Media playback: MP3 from USB or microSD
- Radio: FM tuner with F-type external antenna connection
- Wireless connectivity: Bluetooth 2.3
- Tone control: Bass and treble per output zone
- Emergency muting: 24 V contacts
- Frequency response: 20 Hz–20 kHz ±0.5 dB
- Dynamic range: 92 dB
- THD + N: <0.1%
- Protection: Thermal overload, overcurrent, overvoltage and short circuit
- Power supply: 230 V AC, 50 Hz (IEC)
- Dimensions: 482 × 300 × 88 mm
- Weight: 11.556 kg
Technical Specifications
- Amplifier Type
- PA Amplifier
- Type
- Integrated
Additional Specifications
- Radio
- No
- Cooling system
- No
Connectivity
- RCA
- No
- XLR
- No
- Mini Jack (3.5mm)
- No
- Jack (6.3mm)
- No
- USB
- No
- Ethernet
- No
- Bluetooth
- No
- Mic In
- No
Dimensions
- Width
- -
- Height
- -
- Length
- -
