ETI Four-Pole Rail Switch 25A
Electrical Panel Push Buttons Switches

ETI Four-Pole Rail Switch 25A

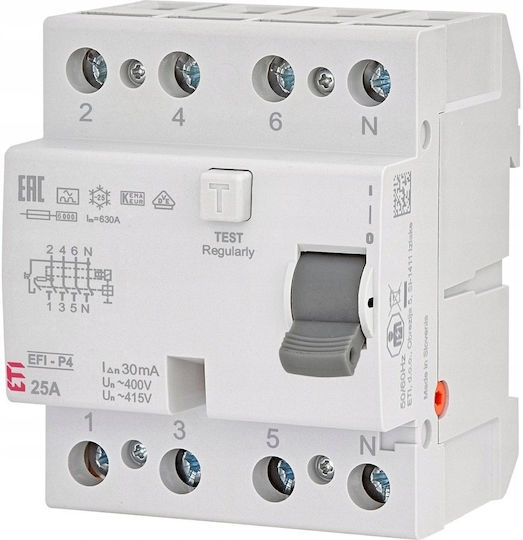

The ETI EFI6-P4 four-pole DIN rail switch is a Type A residual current device, with a rated current of 25 A and a rated residual operating current of 0.03 A. It detects alternating, pulsating and...

The ETI EFI6-P4 four-pole DIN rail switch is a Type A residual current device, with a rated current of 25 A and a rated residual operating current of 0.03 A. It detects alternating, pulsating and smooth DC currents up to 6 mA.

  • Type: A
  • Number of poles: 4
  • Rated current: 25 A
  • Rated residual operating current: 0.03 A
  • Current detection: Alternating, pulsating...
See Description & Specifications See Description & Specifications

Number of poles

  1. 2

    from 60,90 €

  2. 4

    from 59,90 €

Rated voltage

  1. 25 A

    from 59,90 €

  2. 63 A

    from 78,90 €

Learn more about invoicing
Review the product
Product report

Description & Specifications

The ETI EFI6-P4 four-pole DIN rail switch is a Type A residual current device, with a rated current of 25 A and a rated residual operating current of 0.03 A. It detects alternating, pulsating and smooth DC currents up to 6 mA.

  • Type: A
  • Number of poles: 4
  • Rated current: 25 A
  • Rated residual operating current: 0.03 A
  • Current detection: Alternating, pulsating and smooth DC currents up to 6 mA
  • Rated voltage: 415 V
  • Operating voltage: 230 V
  • Rated conditional short-circuit current Inc: 6 kA
  • Frequency: 50/60 Hz
  • Degree of protection: IP20
  • Dimensions: 9 mm × 7 mm × 68 mm
  • Conductor cross-section: 1–25
  • Mounting: On a TH 35 rail
  • Standard: IEC 61008-1
  • Certification: CE

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Number of Poles
4
Rated Voltage
25 A

Features & Functions

WiFi
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

59,90 €
14,00 €   shipping cost
