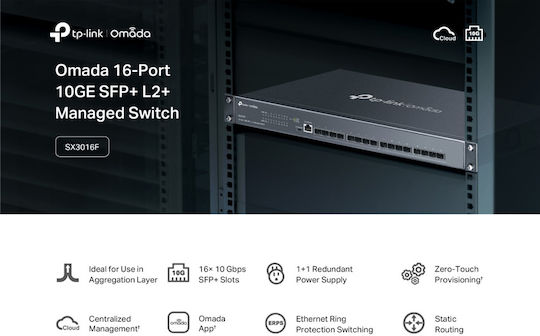

The TP-LINK JetStream TL-SX3016F managed switch expands a wired network with 16 10 Gbps SFP+ ports and a switching capacity of 320 Gbps. It features a metal enclosure for rack mounting and two redundant power supplies. It supports static routing and VLANs, and can be centrally managed through the Omada Cloud-Based Controller, Omada Hardware Controller, or Omada Software Controller.

Management is also available via a web interface, CLI, SNMP, or RMON. Cloud access and the Omada app require one of the controllers listed above, while Zero-Touch Provisioning requires the Omada Cloud-Based Controller.

• Type: Managed L2+ switch
• SFP+ ports: 16 × 10 Gbps
• Console ports: 1 RJ45 and 1 Micro-USB
• Switching capacity: 320 Gbps
• Packet forwarding rate: 238.08 Mpps
• MAC address table: 32,000 entries
• Packet buffer memory: 24 Mbit
• Jumbo Frame: 9 KB
• Power supply: Two redundant power supplies, 100–240 V AC, 50/60 Hz
• Maximum power consumption: 32.74 W at 220 V / 50 Hz
• Maximum heat dissipation: 111.71 BTU/hr at 220 V / 50 Hz
• Fan: 1
• Enclosure: Metal
• Mounting: Rack-mountable
• Physical security lock: Supported
• Dimensions: 440 × 220 × 44 mm (W × D × H)
• Quality of Service (QoS): 8 priority queues, 802.1p CoS/DSCP, SP, WRR, SP+WRR, per-port or per-flow rate limiting, and QoS remarking
• Routing and ARP: 128 IPv4/IPv6 interfaces, 48 static IPv4/IPv6 routes, 128 static and 512 total ARP entries, Proxy ARP, and Gratuitous ARP
• L2/L2+ features: DHCP Server, DHCP Relay, Link Aggregation, Spanning Tree Protocol, Loopback Detection, 802.3x Flow Control, and Mirroring
• Multicast: Up to 1,000 IPv4/IPv6 IGMP groups, IGMP Snooping, IGMP Authentication, MVR, MLD Snooping, and 256 filtering profiles with 16 entries per profile
• VLAN: Up to 4,000 802.1Q VLAN groups, 30 MAC VLAN entries, 16 templates and 12 Protocol VLANs, Private VLAN, GVRP, QinQ, and Voice VLAN
• ACL: Rules based on time, MAC, IP, IPv6, and packet content, applicable to a port or VLAN
• Network features: L2PT, DLDP, PPPoE ID Insertion, ERPS, 802.3ah Ethernet Link OAM, DDM, and sFlow
• Network security: IP-MAC-Port Binding, IPv6-MAC-Port Binding, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, IPv4/IPv6 Source Guard, DoS protection, 802.1X, MAB, RADIUS, TACACS+, port isolation, and access control based on IP, port, or MAC
• Secure management: HTTPS with SSLv3/TLS 1.2 and CLI via SSHv1/SSHv2
• IPv6: Dual IPv4/IPv6, IPv6 ACL, static routing, ND, ICMPv6, TCPv6/UDPv6, and DHCPv6, Ping6, Tracert6, Telnet, SNMP, SSH, SSL, HTTP/HTTPS, and TFTP applications
• Centralized management: Omada Cloud-Based Controller, Omada Hardware Controller, or Omada Software Controller
• Local management: Web interface, CLI via console port, Telnet, SNMP v1/v2c/v3, and RMON
• Additional management features: Automatic device discovery, batch configuration and firmware upgrades, network monitoring, event notifications, scheduled reboot, LLDP/LLDP-MED, DHCP Auto Install, Dual Image, Dual Configuration, cable diagnostics, SNTP, and System Log
• Operating temperature: 0–45 °C
• Operating humidity: 10–90% RH, non-condensing
• Package contents: Switch, 2 power cords, rack-mounting kit, rubber feet, and quick installation guide
